12V Lithium battery charger
12V lithium battery is an informal name, generally refers to 3 series lithium-ion battery packs (nominal voltage 11.1V or 10.8V), or 4 series lithium-ion battery packs (nominal voltage 14.4V or 14.8V), or 4 series lithium iron phosphate battery packs (nominal voltage 12.8V). The battery capacity is mainly between 2Ah ~ 200Ah.
12V lithium batteries have a wide range of applications, including: automobiles (replacing traditional lead-acid batteries as starting batteries, lights and electronic equipment auxiliary power supply), power tools (such as electric sprayers, etc.), portable devices (such as laptops, etc.), emergency lighting, medical equipment, small communication equipment, security monitoring equipment, etc.
Green Digital Power has more than 20 years of professional R&D and manufacturing experience in the field of battery chargers and battery management. For various 12V lithium battery packs with different rated voltages and different battery capacities, we recommend the following standard models of smart chargers for you to choose from:
|

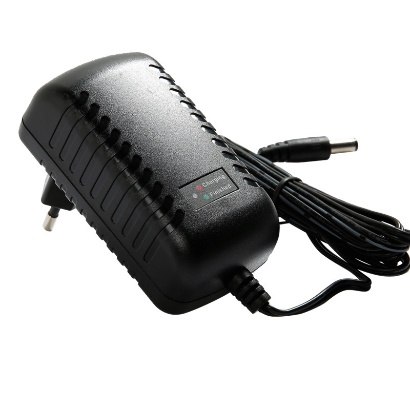

12.6V 16.8V 1.5A Lithium Ion charger (P2012-L3, L4) 14.4V 1.5A LiFePO4 charger (P2012-F4) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 0.5A |
|
Output feature & suit battery |
P2012-L3: 12.6V 1.5A, suit 3s Li-ion 2~15Ah P2012-L4: 16.8V 1.3A, suit 4s Li-ion 2~13Ah P2012-F4, 14.4V 1.5A, suit 4s LiFePO4 2~15Ah |
|
|
Power efficiency |
83% |
|
|
Charge Curve |
constant current + constant voltage |
|
|
Charge Display |
Bi-color LED, RED charging, GREEN full/idle |
|
|
Size & Weight |
83 x 43 x 30mm/120g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
TUV, CE, cTUVus, PSE |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC plug type: US, VDE, PSE, CCC; DC type: 5.5*2.5*12mm barrel plug |
|
|
View more details, click here to download specification, P2012-EN.pdf |
||
|

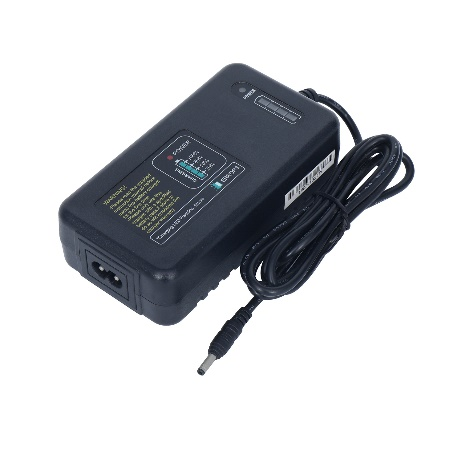

12.6V 16.8V 3.3A Lithium Ion charger (G60-12L3, L4) 14.4V 3.3A LiFePO4 charger (G60-12F4) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.0A |
|
Output feature & suit battery |
G60-12L3: 12.6V 3.3A, suit 3s Li-ion 3~33Ah G60-12L4: 16.8V 2.8A, suit 4s Li-ion 3~28Ah G60-12F4, 14.4V 3.3A, suit 4s LiFePO4 3~33Ah |
|
|
Power efficiency |
83% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Four LEDs to indicate battery SOC (capacity level) |
|
|
Size & Weight |
120 x 67 x 38mm/270g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
CCC, CE, cTUVus, FCC, PSE |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
View more details, click here to download specification,G60-EN.pdf |
||
|

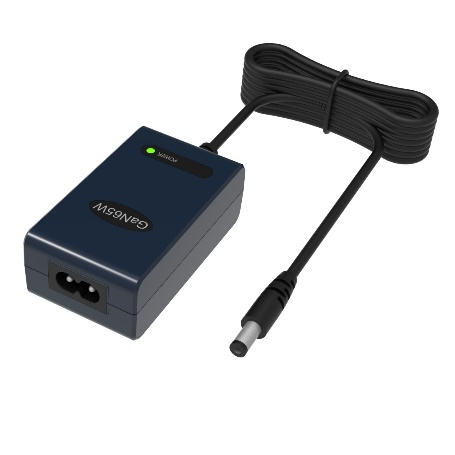

12.6V 16.8V 4A Lithium Ion charger (GaN065-126040, 168030) 14.4V 3.5A LiFePO4 charger (GaN065-144035) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.0A |
|
Output feature & suit battery |
GaN065-126040: 12.6V 4.0A, suit 3s Li-ion 4~40Ah GaN065-168030: 16.8V 3.0A, suit 4s Li-ion 3~30Ah GaN065-144035, 14.4V 3.5A, suit 4s LiFePO4 3~35Ah |
|
|
Power efficiency |
90% (GaN solution, compact size) |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Bi-color LED, RED charging, GREEN full/idle |
|
|
Size & Weight |
75 x 43 x 28mm/100g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;DC type: 5.5*2.5*12mm barrel plug |
|
|
View more details, click here to download specification, GAN065-4LED-EN.pdf |
||
|

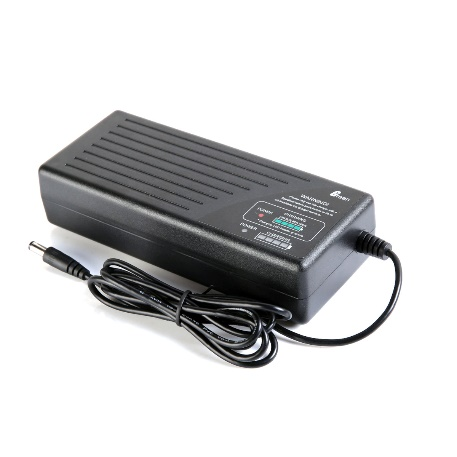

12.6V 16.8V 5A Lithium Ion charger (G100-12L3, L4) 14.4V 5A LiFePO4 charger (G100-12F4) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.5A |
|
Output feature & suit battery |
G100-12L3: 12.6V 5.0A, suit 3s Li-ion 5~50Ah G100-12L4: 16.8V 4.5A, suit 4s Li-ion 5~45Ah G100-12F4, 14.4V 5.0A, suit 4s LiFePO4 5~50Ah |
|
|
Power efficiency |
83% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Four LEDs to indicate battery SOC (capacity level) |
|
|
Size & Weight |
175 x 72 x 40mm/400g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
CCC, CE, cTUVus, FCC, PSE |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
View more details, click here to download specification, G100-EN.pdf |
||
|

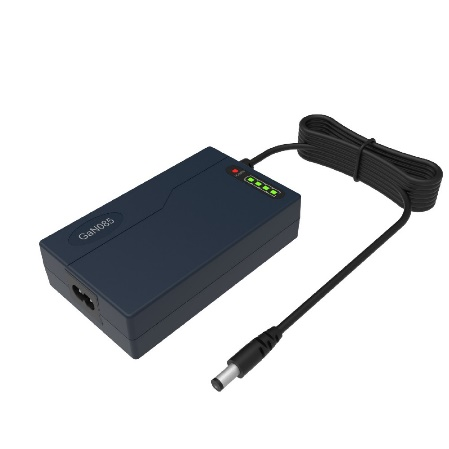

12.6V 16.8V 6A Lithium Ion charger (GaN085-126060, 168050) 14.4V 6A LiFePO4 charger (GaN085-144060) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.5A |
|
Output feature & suit battery |
GaN085-126060: 12.6V 6.0A, suit 3s Li-ion 6~60Ah GaN085-168050: 16.8V 5.0A, suit 4s Li-ion 5~50Ah GaN085-144060, 14.4V 6.0A, suit 4s LiFePO4 6~60Ah |
|
|
Power efficiency |
90% (GaN solution, compact size) |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Four LEDs to indicate battery SOC (capacity level) |
|
|
Size & Weight |
114 x 68 x 29mm/350g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
View more details, click here to download specification, GAN085-4LED-EN.pdf |
||
|

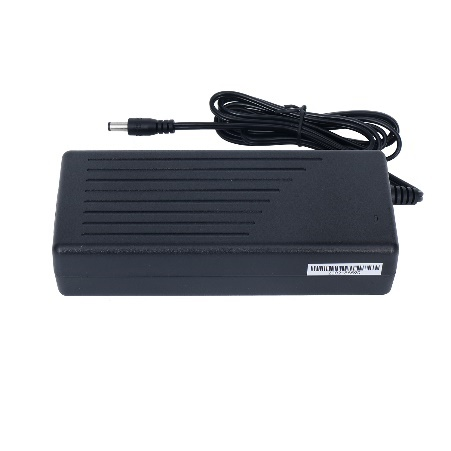

12.6V 16.8V 10A Lithium Ion charger (G168-126120,168100) 14.4V 10A LiFePO4 charger (G168-144110) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 2.0A, PF>0.95 |
|
Output feature & suit battery |
G168-126120: 12.6V 12A, suit 3s Li-ion 10~120Ah G168-168100: 16.8V 10A, suit 4s Li-ion 10~100Ah G168-144110, 14.4V 11A, suit 4s LiFePO4 10~100Ah |
|
|
Power efficiency |
92% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Bi-color LED, RED charging, GREEN full/idle |
|
|
Size & Weight |
175 x 72 x 40mm/700g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
cTUVus, CCC, TUV, CE, CB, RCM, PSE, FCC, KC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type; DC type: 5.5*2.5*12mm barrel plug |
|
|
View more details, click here to download specification, G168-CH-EN.pdf |
||
|

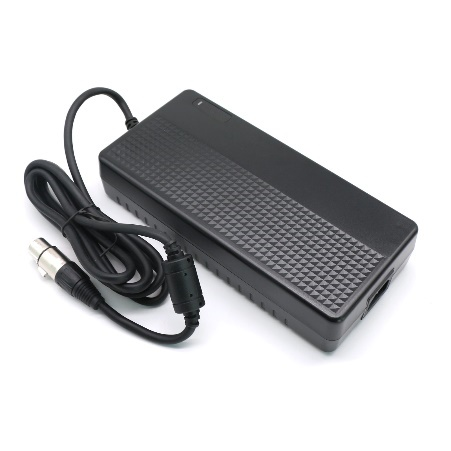

12.6V 16.8V 18A Lithium Ion charger (G300-126180,168180) 14.4V 18A LiFePO4 charger (G300-144180) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 3.5A, PF>0.95 |
|
Output feature & suit battery |
G300-126180: 12.6V 12A, suit 3s Li-ion 20~200Ah G300-168180: 16.8V 10A, suit 4s Li-ion 20~200Ah G300-144180, 14.4V 11A, suit 4s LiFePO4 20~200Ah |
|
|
Power efficiency |
92% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Bi-color LED, RED charging, GREEN full/idle |
|
|
Size & Weight |
220 x 105 x 43mm/1300g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
cTUVus, CCC, TUV, CE, CB, RCM, PSE, FCC, KC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C14 type; DC type: SB-50/XT-60 |
|
|
View more details, click here to download specification, G300-CH-EN.pdf |
||
|

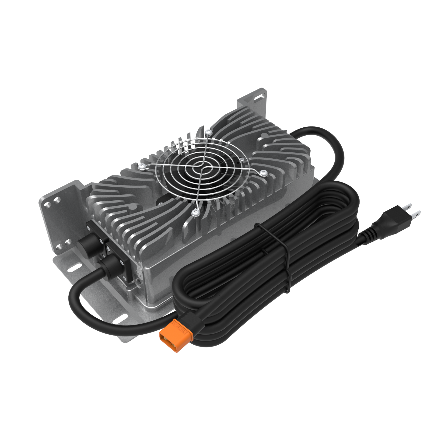

12.6V 16.8V 40A Lithium Ion charger (WP800-126400,168400) 14.4V 40A LiFePO4 charger (WP800-144400) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 8A, PF>0.95 |
|
Output feature & suit battery |
WP800-126400: 12.6V 12A, suit 3s Li-ion 40~400Ah WP800-168400: 16.8V 10A, suit 4s Li-ion 40~400Ah WP800-144400,14.4V 11A, suit 4s LiFePO4 40~400Ah |
|
|
Power efficiency |
91% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Three-color LED indicate charging status |
|
|
Size & Weight |
288x 130 x 82mm/2500g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed, waterproof |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
Aluminum Alloy casting housing, FAN cooling, IP67 class |
|
|
Input & output type |
AC plug type: US, EU, PSE, CCC; DC type: XT-90 |
|
|
Communication port: CAN (More details, click here to download specification, (WP800-EN.pdf) |
||
