12V Power Adapter
A 12V power adapter, also known as a 12V power supply, has several distinctive features and is used in a variety of applications. Here are the key characteristics and common application field:
Features of high current 12V Power Adapter from GDPT:
1. Current Ratings:Available in various current ratings (from 4A to 20A) to suit the power requirements of different devices.
2. Safety Certifications: Typically bears safety certifications such as CCC, CE, cTUVus, PSE, and FCC, ensuring compliance with electrical safety standards.;
3. Protection Features: Equipped with protection against over-voltage, over-current, and short-circuit conditions to safeguard both the adapter and the connected equipment.
4. Efficiency: Up to 92% efficiency, this reduces energy waste and minimizes heat dissipation.
5. Connector Types: Comes with various connector types to match the input requirements of different devices, such as barrel jacks and XT60.
6. Input Voltage Range: Designed to accept a wide range of input voltages (e.g., 100-240V AC), making it suitable for global use.
7. Compact Design: Often compact and lightweight for easy portability and space-saving.
8. Reliability: Built with high-quality components to ensure long-term reliability and durability.
9. CV or CC mode: All of our power adapter can work in constant current or constant voltage mode. CV mode is default, CC mode is required by LED driving or battery charging application.
Main Application Scenarios:
1. Portable Electronics: Powers portable devices like laptops, tablets, and smartphones when used with the appropriate connectors.
2. Home Appliances: Used for low-voltage home appliances, such as small fans, coffee makers, or kitchen gadgets.
3. Security Systems:Provides power to surveillance cameras, alarm systems, and other security-related electronics.
4. LED Lighting: Supplies power to LED strips, lamps, and other lighting fixtures that require 12V DC.
5. Industrial Equipment: Utilized in industrial settings for machinery and equipment that operate on 12V DC power.
6. Automotive Applications: Powers 12V accessories in vehicles, such as GPS systems, dash cameras, or audio equipment.
7. Medical Devices:Some medical devices and instruments may operate on 12V DC, requiring a power adapter for reliable power supply.
8. Communication Devices: Powers routers, modems, and other communication equipment.
9. Audio Equipment: Used in audio systems, including amplifiers, speakers, and sound mixers.
10. Computing Peripherals: Powers various computer peripherals, such as external hard drives, printers, and scanners.
When selecting a 12V power adapter, it's important to consider the specific requirements of the device it will be powering, including voltage, current, connector type, and any additional features that may be necessary for safe and efficient operation.
|

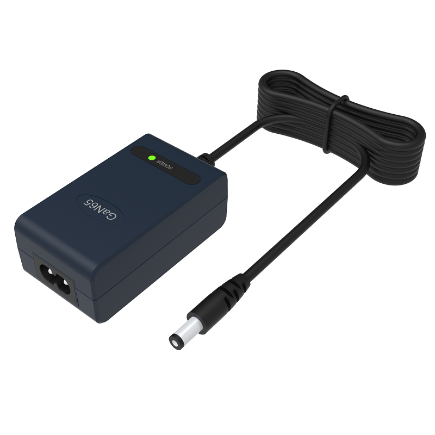

GaN065-120040 12V 4A ACDC Power Adapter (GaN technology, only 1/3 size and weight of traditional adapter) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.0A |
|
Output feature |
12V 4A |
|
|
Power efficiency |
90% (GaN solution, compact size) |
|
|
Output ripple |
<100mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
75 x 43 x 28mm/150g |
|
|
Protections |
OCP, OLP,OVP, short circuit |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|

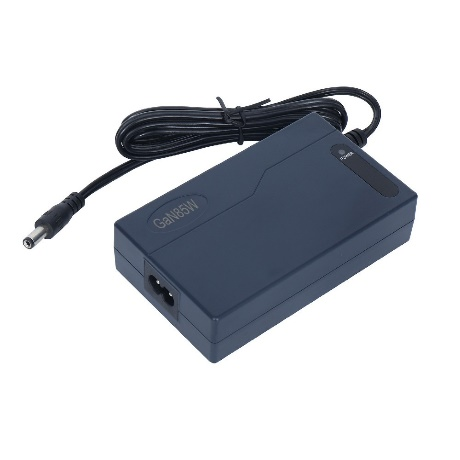

GaN085-120060 12V 6A ACDC Power Adapter (GaN technology, only 1/2 size and weight of traditional adapter) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.5A |
|
Output feature |
12V 6A |
|
|
Power efficiency |
92% (GaN solution, compact size) |
|
|
Output ripple |
<100mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
114 x 68 x 29mm/300g |
|
|
Protections |
OCP, OLP, OVP, short circuit |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|

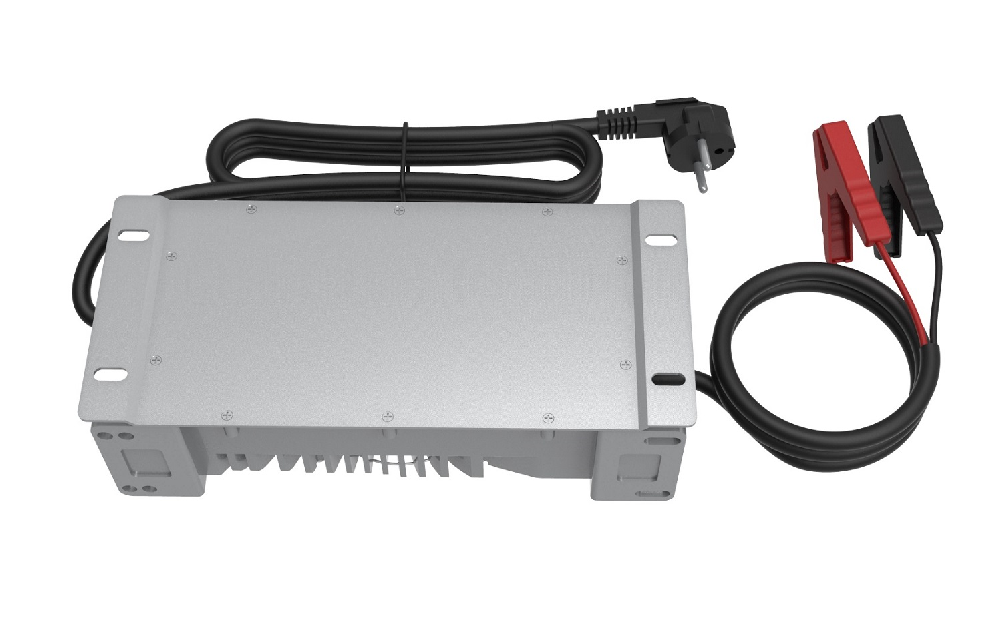

G168-120130 12V 13A ACDC Power Adapter |
||
|
|
Input feature |
AC 100~240V 50~60Hz 2.0A |
|
Output feature |
12V 13A |
|
|
Power efficiency |
92% |
|
|
Output ripple |
<100mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
175 x 72 x 40mm/700g |
|
|
Protections |
OCP, OLP, OVP, short circuit |
|
|
Safety & EMC |
CE, FCC, CCC, cTUVus, PSE, CB, SAA, RCM |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: XT-60 or 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|

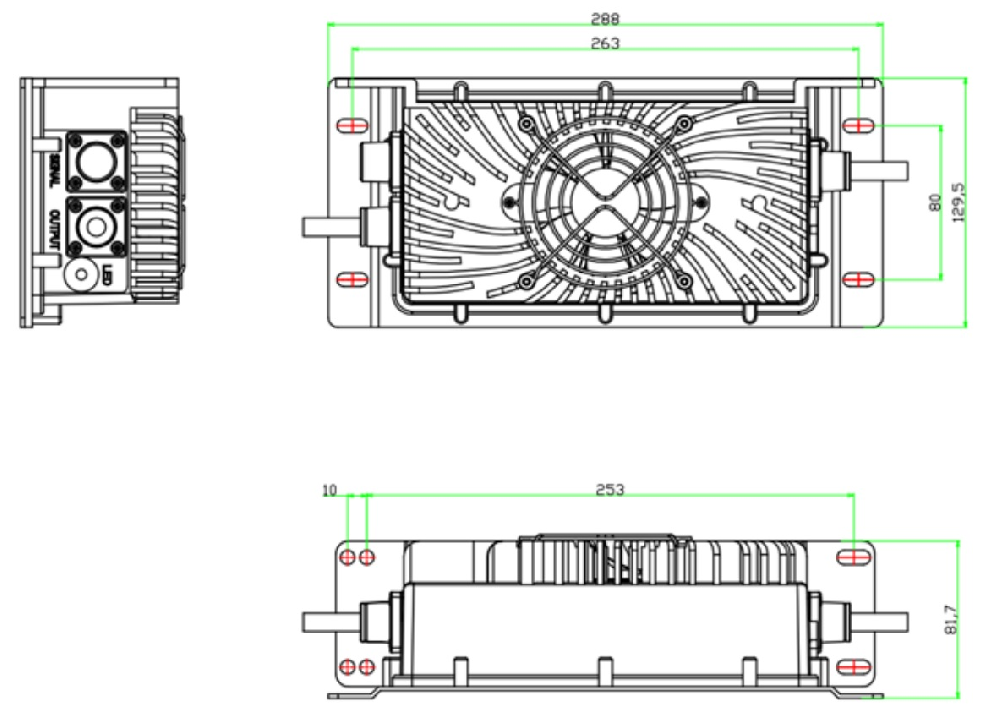

G300-120180 12V 18A ACDC Power Adapter |
||
|
|
Input feature |
AC 100~240V 50~60Hz 6.0A |
|
Output feature |
12V 18A |
|
|
Power efficiency |
92% |
|
|
Output ripple |
<100mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
220 x 105 x 43mm/1300g |
|
|
Protections |
OCP, OLP, OVP, short circuit |
|
|
Safety & EMC |
CE, FCC, CCC, cTUVus, PSE, CB, SAA, RCM |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: XLR or XT-60 |
|
|
Click here to learn more details information about this charger |
||
