24V Power Adapter
24V power adapter, also known as a 24V power supply, has several distinctive features and is used in a variety of applications. Here are the key characteristics and common application field:
Features of some 24V Power Adapters from GDPT:
1. Current Ratings:Available in various current ratings (from 2A to 20A) to suit the power requirements of different devices.
2. Safety Certifications: Typically bears safety certifications such as CCC, CE, cTUVus, PSE, and FCC, ensuring compliance with electrical safety standards.
3. Protection Features: 3.Equipped with protection against over-voltage, over-current, and short-circuit conditions to safeguard both the adapter and the connected equipment.
4. Efficiency:Up to 94% efficiency, this reduces energy waste and minimizes heat dissipation.
5. Connector Types: Comes with various connector types to match the input requirements of different devices, such as barrel jacks and XT60.
6. Input Voltage Range: Designed to accept a wide range of input voltages (e.g., 100-240V AC), making it suitable for global use.
7. Compact Design: Often compact and lightweight for easy portability and space-saving.
8. Reliability: Built with high-quality components to ensure long-term reliability and durability.
9. CV or CC mode: All of our power adapter can work in constant current or constant voltage mode. CV mode is default, CC mode is required by LED driving or battery charging application.
Main Application Scenarios:
1. Industrial Automation: Used in industrial settings for powering actuators, sensors, and control systems that operate on 24V DC.
2. Telecommunications:2.Powers remote telecommunications equipment, such as base stations and repeaters, which often require 24V DC.
3. RV and Marine Applications:Commonly used in recreational vehicles and marine vessels, where 24V systems are standard for certain electrical components.
4. Electrical Vehicles:Some components of electric vehicles, such as chargers or auxiliary systems, may use 24V power adapters.
5. Renewable Energy Systems: Utilized in solar power systems or wind energy systems for charging 24V batteries or powering related equipment.
6. Medical Equipment:Certain medical devices that require higher voltage outputs may use 24V power adapters.
7. High-End Audio SystemsSome professional audio equipment, such as studio monitors or high-fidelity amplifiers, may operate on 24V DC.
8. Testing and Measurement Equipment: Certain types of test and measurement instruments that demand higher voltage levels might use 24V adapters.
9. UPS Systems 9.Uninterruptible power supply systems may have components that require 24V DC power.
10. Custom Electronics: 10.Used in custom electronic projects or modifications where 24V is the preferred voltage for operation.
When choosing a 24V power adapter, it's crucial to consider the specific voltage and current requirements of the device, as well as the adapter's safety features, efficiency, and physical compatibility with the device's power input.
|

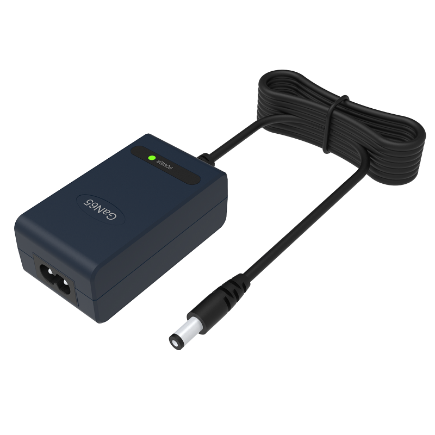

GaN065-240020 24V 2A ACDC Power Adapter (GaN technology, only 1/3 size and weight of traditional adapter) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.0A |
|
Output feature |
24V 2A |
|
|
Power efficiency |
90% (GaN solution, compact size) |
|
|
Output ripple |
<200mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
75 x 43 x 28mm/150g |
|
|
Protections |
OCP, OLP,OVP, short circuit |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|

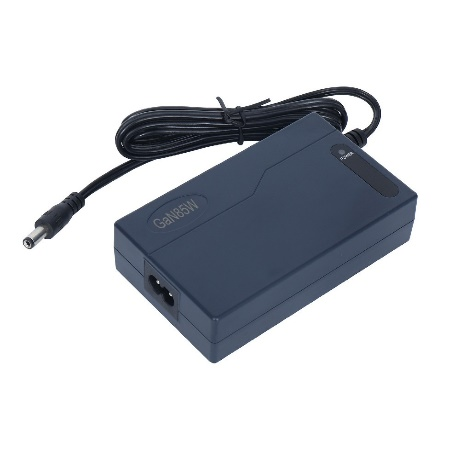

GaN085-240035 24V 3.5A ACDC Power Adapter (GaN technology, only 1/2 size and weight of traditional adapter) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.5A |
|
Output feature |
24V 3.5A |
|
|
Power efficiency |
92% (GaN solution, compact size) |
|
|
Output ripple |
<200mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
114 x 68 x 29mm/300g |
|
|
Protections |
OCP, OLP, OVP, short circuit |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|
G168-240070 24V 7A ACDC Power Adapter |
||
|
|
Input feature |
AC 100~240V 50~60Hz 2.0A |
|
Output feature |
24V 7A |
|
|
Power efficiency |
94% |
|
|
Output ripple |
<200mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
175 x 72 x 40mm/700g |
|
|
Protections |
OCP, OLP, OVP, short circuit |
|
|
Safety & EMC |
CE, FCC, CCC, cTUVus, PSE, CB, SAA, RCM |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: XT-60 or 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|

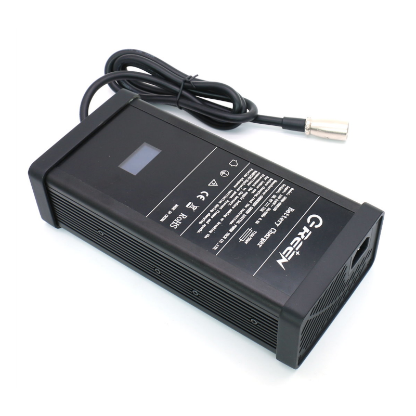

G300-240125 24V 12.5A ACDC Power Adapter |
||
|
|
Input feature |
AC 100~240V 50~60Hz 3.5A |
|
Output feature |
24V 12.5A |
|
|
Power efficiency |
94% |
|
|
Output ripple |
<200mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
220 x 105 x 43mm/1300g |
|
|
Protections |
OCP, OLP, OVP, short circuit |
|
|
Safety & EMC |
CE, FCC, CCC, cTUVus, PSE, CB, SAA, RCM |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C14 type;; DC type: XLR or XT-60 |
|
|
Click here to learn more details information about this charger |
||
|
G600-240200 24V 20A ACDC Power Adapter |
||
|
|
Input feature |
AC 100~240V 50~60Hz 6.0A |
|
Output feature |
24V 20A |
|
|
Power efficiency |
94% |
|
|
Output ripple |
<200mV rms |
|
|
CV or CC mode |
Default is CV mode, CC mode is optional selection |
|
|
Size & Weight |
240 x 117 x 66mm/1600g |
|
|
Protections |
OCP, OLP, OVP, short circuit |
|
|
Safety & EMC |
CE, FCC, CCC, cTUVus CB |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C14 type;; DC type: XLR or XT-60 |
|
|
Click here to learn more details information about this charger |
||
