Lead-Acid AGM battery charger
AGM battery is the most common Lead-Acid (also named Pb-Acid) battery type. Other common types of Lead-Acid battery are GEL VRLA and SLA. Green Digital Power Tech provide 10+ series 50+ models AGM battery chargers, they are also suitable for GEL, SLA and VRLA types. Battery voltage from 6V to 72V, capacity from 8Ah to 500Ah, these AGM chargers have following features:
1.Charging Process:

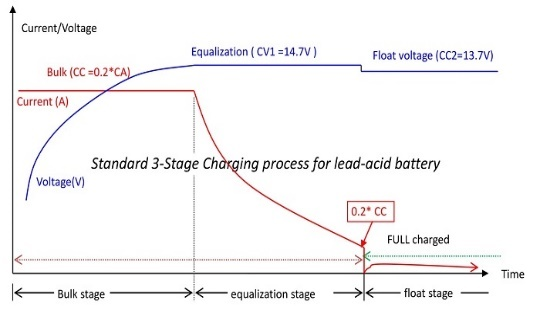

The standard AGM battery charging process is “3-Stage”, means “Bulk+ Equalizing + Float”. See right curve. Bulk stage is constant current stage, charge current is set at 0.1~0.2C, here C is capacity **Ah. Equalizing stage is constant voltage process, for 12V battery this stage CV is 14.7V. When battery full charged(charge current drop below 0.2*CC), charge enter float stage, This is also CV stage, voltage is set at 13.7V for 12V type.

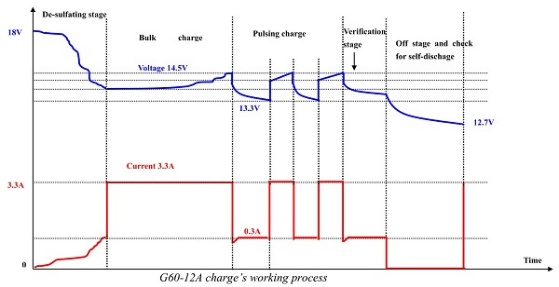

We also provide charger with desulfation repairing function, P/N is G6-12A. This desulfation chargers combat lead-acid battery sulfation by breaking down lead sulfate crystals, restoring capacity, and extending battery life through a 5-stage process like right curve. G60-12A is suitable for 12V 15~60Ah AGM, GEL and most VRLA battery.
2.Charging status display:
Our chargers offer three types of charging display methods. The basic model is using a RED/GREEN bi-color LED to indicate the charging status. For customers who need to know the state of charge (SOC) at any time, they can choose our chargers with Fuel Gauge LEDs indicator. For those who require real-time data of voltage, current, energy, SOC, SOH and timer, we offer charger products with an LCD screen display.
3.Safety protections:
Safety is a critical aspect of AGM GEL battery chargers. Mian of our battery chargers provide protections against overvoltage, undervoltage, overcurrent, overtemperature, short-circuit, battery reversed conditions.
4.EMC & LVD approval:
All of our battery chargers passed basic EMC & LVD safety approval requirements. Many chargers have CE, CB, FCC, CCC, ETL, PSE, UKCA, cTUVus, SAA, KC and RCM.

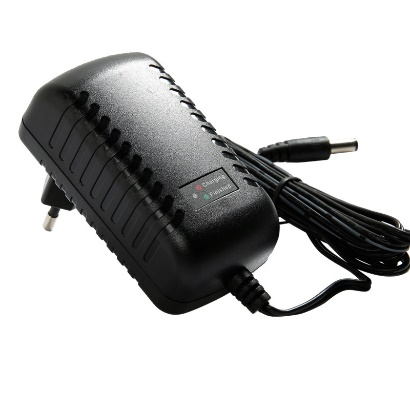

P2012-Ax 6V2A 12V1.5A AGM battery charger | ||
| Input feature | AC 100~240V 50~60Hz 0.5A |
Output feature & suit battery | P2012-A6: 7.4V 2.0A, suit AGM GEL 8~24Ah P2012-A12: 14.7V 1.5A, suit AGM GEL 6~18Ah | |
Power efficiency | 83% | |
Charge Curve | Standard 3 - -stage (Bulk—Equalizing—float) | |
Charge Display | Bi-color LED, RED charging, GREEN full/idle | |
Size & Weight | 83 x 43 x 30mm/120g | |
Protections | OCP, OVP, short circuit | |
Safety & EMC | TUV, CE, cTUVus, PSE | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC plug type: US, VDE, PSE, CCC; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger. | ||

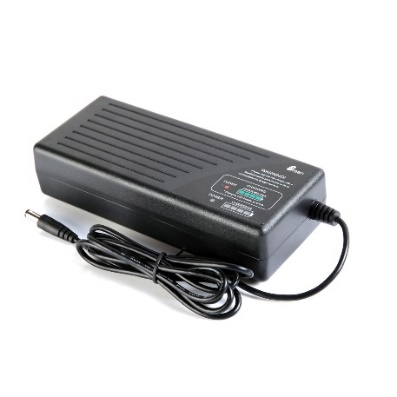

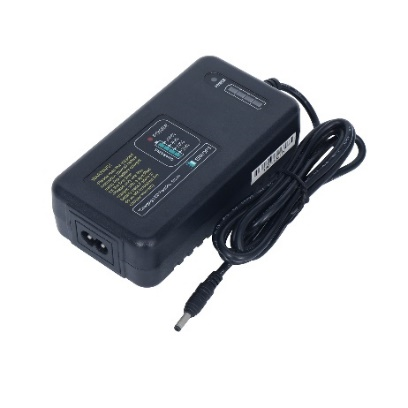

G60-xx 50W AGM charger with SOC level | ||
| Input feature | AC 100~240V 50~60Hz 1.0A |
Output feature & suit battery | G60-12A: 13.7V 3.3A, suit 12V AGM GEL 12~60Ah G60-24A, 27.4V 1.8A, suit 24V AGM GEL 7~20Ah | |
Power efficiency | 83% | |
Charge Curve | G60-12A is 5-stage curve with desulfation repairing function G60-24A is standard 3-stage curve | |
Charge Display | Four LEDs to indicate battery SOC (capacity level) | |
Size & Weight | 120 x 67 x 38mm/270g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | CCC, CE, cTUVus, FCC, PSE | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger. | ||

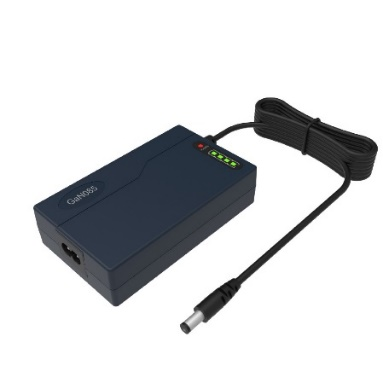

GaN065-xxxyyy 50W AGM charger with SOC level | ||
| Input feature | AC 100~240V 50~60Hz 1.0A |
Output feature & suit battery | GaN065-138033: 13.7V 4.0A, suit 3s AGM GEL 16~40Ah GaN065-274018, 27.6V 1.8A, suit 7s AGM GEL 7~20Ah | |
Power efficiency | 90% (GaN solution, compact size) | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | Four LEDs to indicate battery SOC (capacity level) | |
Size & Weight | 75 x 43 x 28mm/100g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | CE, FCC | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger | ||
G100-xx 90W AGM charger with SOC level | ||
| Input feature | AC 100~240V 50~60Hz 1.5A |
Output feature & suit battery | G100-12A: 13.8V 5A, suit 12V AGM GEL 20~60Ah G100-24A, 27.6V 2.8A, suit 24 AGM GEL 10~30Ah G100-36A: 41.4.0V 1.8A, suit 36 AGM GEL 7~20Ah G100-48A, 55.2V 1.5A, suit 48 AGM GEL 6~18Ah | |
Power efficiency | 83% | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | Four LEDs to indicate battery SOC (capacity level) | |
Size & Weight | 175 x 72 x 40mm/400g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | CCC, CE, cTUVus, FCC, PSE | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger | ||
GaN085-xxxyyy 85W AGM charger with SOC level | ||
| Input feature | AC 100~240V 50~60Hz 1.5A |
Output feature & suit battery | GaN085-138060: 13.8V 6.0A, suit 12V AGM GEL 24~72Ah GaN065-276028, 27.6V 2.8A, suit 24V AGM GEL 10~30Ah GaN065-414020, 41.4V 2.0A, suit 36V AGM GEL 8~24Ah | |
Power efficiency | 90% (GaN solution, compact size) | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | Four LEDs to indicate battery SOC (capacity level) | |
Size & Weight | 114 x 68 x 29mm/350g | |
Protections | OCP, OVP,short circuit, battery reversed | |
Safety & EMC | CE, FCC | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger | ||

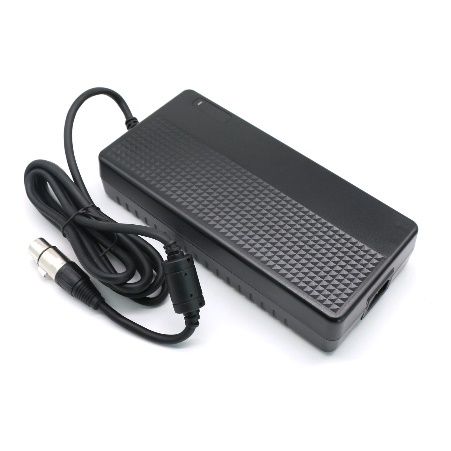

G168-xxxyyy 168W AGM battery charger | ||
| Input feature | AC 100~240V 50~60Hz 2.0A, PF>0.95 |
Output feature & suit battery | G168-138120: 13.8V 12A, suit 12V AGM GEL 50~150Ah G168-276057, 27.6V 5.7A, suit 24V AGM GEL 22~66Ah G168-414040: 41.4V 4.0A, suit 36V AGM GEL 16~48Ah G168-552280: 55.2V 2.8A, suit 48V AGM GEL 10~30Ah | |
Power efficiency | 92% | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | Bi-color LED, RED charging, GREEN full/idle | |
Size & Weight | 175 x 72 x 40mm/700g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | cTUVus, CCC, TUV, CE, CB, RCM, PSE, FCC, KC | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger | ||
G168-xxxyyy 168W AGM battery charger | ||
| Input feature | AC 100~240V 50~60Hz 3.5A, PF>0.95 |
Output feature & suit battery | G300-138180: 13.8V 18A, suit 12V AGM GEL 70~220Ah G300-276110, 27.6V 10A, suit 24V AGM GEL 40~120Ah G300-414070: 41.4V 7.0A, suit 36V AGM GEL 28~84Ah G300-552050: 55.2V 5.0A, suit 48V AGM GEL 20~60Ah | |
Power efficiency | 92% | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | Bi-color LED, RED charging, GREEN full/idle | |
Size & Weight | 220 x 105 x 43mm/1300g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | cTUVus, CCC, TUV, CE, CB, RCM, PSE, FCC, KC | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C14 type; DC type: SB-50/XT-60 | |
Click here to learn more details information about this charger | ||

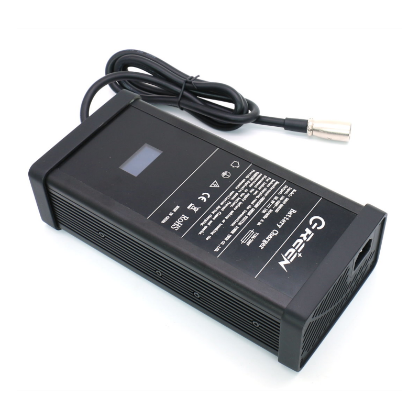

G600-xxxyyy 600W AGM battery charger | ||
| Input feature | AC 100~240V 50~60Hz 7A, PF>0.95 |
Output feature & suit battery | G600-138330: 13.8V 33A, suit 12V AGM GEL 120~400Ah G600-276200, 27.6V 20A, suit 25V AGM GEL 80~240Ah G600-414142: 41.4V 14A, suit 36V AGM GEL 56~200Ah G600-552100, 55.2V 10A, suit 48V AGM GEL 40~120Ah | |
Power efficiency | 92% | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | LCD digital display show voltage, current, capacity, SOC, SOH and run time | |
Size & Weight | 240x 117 x 66mm/1500g | |
Protections | OCP, OVPOTP, short circuit, battery reversed | |
Safety & EMC | CB, cTUVus, CE, FCC | |
Housing & cooling | Aluminum Alloy housing, FAN cooling, | |
Input & output type | AC inlet ICE-320-C14 type; DC type: XT-60 | |
Communication port: CAN ( Click here to learn more details information) | ||

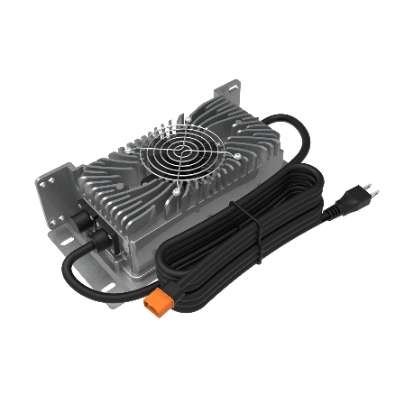

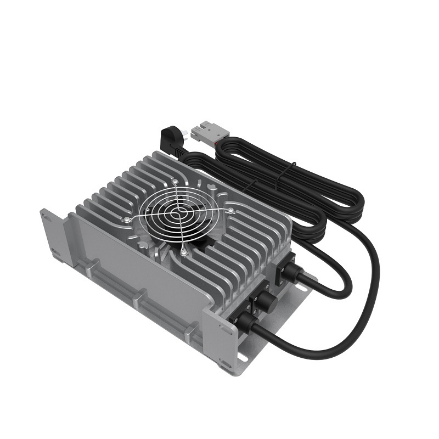

WP800-xxxyyy 800W AGM battery charger (IP67 Waterproof) | ||
| Input feature | AC 100~240V 50~60Hz 8A, PF>0.95 |
Output feature & suit battery | WP800-138400: 12.6V 40A, suit 12V AGM GEL 120~360Ah WP800-276250: 29.4V 25A, suit 24V AGM GEL 100~30Ah WP800-414180: 42.0V 18A, suit 36V AGM GEL 72~220Ah WP800-552140: 58.8V 14A, suit 48V AGM GEL 56~180Ah WP800-690120: 69.0V 12A, suit 60V AGM GEL 48~150Ah WP800-828100: 82.8V 10A, suit 72V AGM GEL 40~120Ah | |
Power efficiency | 92% | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | Three-color LED indicate charging status | |
Size & Weight | 288x 130 x 82mm/2500g | |
Protections | OCP, OVP, short circuit, battery reversed,waterproof | |
Safety & EMC | CE, FCC | |
Housing & cooling | Aluminum Alloy casting housing, FAN cooling, IP67 class | |
Input & output type | AC plug type: US, EU, PSE, CCC; DC type: XT-90 | |
Communication port: CAN ( Click here to learn more details information) | ||

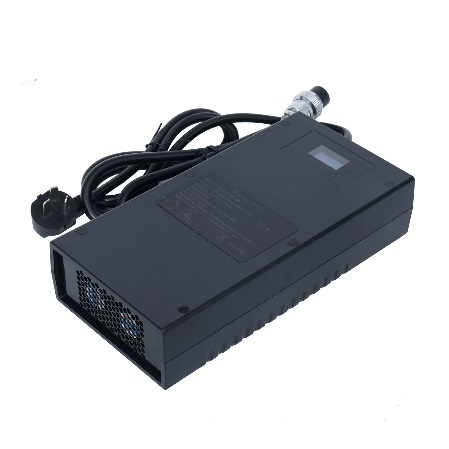

G1200-xxxyyy 1200W AGM battery charger | ||
| Input feature | AC 100~240V 50~60Hz 13A, PF>0.95 |
Output feature & suit battery | G1200-276360: 29.4V 36A, suit 24V AGM GEL 150~450Ah G1200-414280: 42.0V 28A, suit 36V AGM GEL 120~360Ah G1200-552200: 58.8V 20A, suit 48V AGM GEL 80~240Ah G1200-690160: 69.8V 16A, suit 60V AGM GEL 64~200Ah G1200-828140: 82.8V 14A, suit 72V AGM GEL 56~180Ah | |
Power efficiency | 92% | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | LCD digital display show voltage, current, capacity, SOC, SOH and run time | |
Size & Weight | 265x 134 x 60mm/2500g | |
Protections | OCP, OVPOTP, short circuit, battery reversed | |
Safety & EMC | CB, cTUVus, CE, FCC | |
Housing & cooling | Aluminum Alloy housing, FAN cooling, | |
Input & output type | AC inlet ICE-320-C14 type; DC type: SB-50 | |
Communication port: CAN ( Click here to learn more details information) | ||
WP1800-xxxyyy 1800W AGM battery charger (IP67 Waterproof) | ||
| Input feature | AC 100~240V 50~60Hz 16A, PF>0.95 |
Output feature & suit battery | WP1800-276500: 29.4V 50A, suit 24V AGM GEL 50~500Ah WP1800-414400: 42.0V 40A, suit 36V AGM GEL 40~400Ah WP1800-552300: 54.6V 30A, suit 48V AGM GEL 30~300Ah WP1800-690300: 58.8V 30A, suit 60V AGM GEL 30~300Ah WP1800-828200, 84.0V 20A, suit 72V AGM GEL 20~200Ah | |
Power efficiency | 92% | |
Charge Curve | Standard 3-stage (Bulk—Equalizing—float) | |
Charge Display | Three-color LED indicate charging status | |
Size & Weight | 288x 168 x 89mm/4300g | |
Protections | OCP, OVP, short circuit, battery reversed, waterproof | |
Safety & EMC | CE, FCC | |
Housing & cooling | Aluminum Alloy casting housing, FAN cooling, IP67 class | |
Input & output type | AC plug type: US, EU, PSE, CCC; DC type: Anderson SB-50 | |
Communication port: CAN ( Click here to learn more details information) | ||
