LiFePO4 (LFP) battery charger
Green Digital Power Tech is a professional LiFePO4 battery chargers manufacturer，Green’s LiFePO4 (LFP) battery chargers are designed for common and special LiFePO4 batteries, which are mainly used on EV car, energy storage system, outdoor power station, low speed EV (such as golf cart, e-bike, electric moto cycle) and power tool. Green Digital Power Tech provide 10+ series 100+ standard chargers for most kinds of LiFePO4 batteries voltage from 3.2V to 72V, capacity from 2Ah to 400Ah, these LFP chargers have following features:
1.“Two-stage” & “Four-stage” Charging Process:
The basic LiFePO4 charging process is “Two stages”, CC+CV. During CC stage, the charger supplies a constant current to the battery until the voltage reaches N*3.6V. In the CV stage, the voltage is held constant, and the current gradually decreases until the battery is fully charged.
For high-performance LiFePO4 battery chargers, we employ “Four-stage” charging strategy, the “four-stage” adds a small current pre-charge stage (which helps to extend battery life) at the beginning and add a shut-off stage at the end (which helps to enhance charging safety). Our main chargers using this 4-stage charging process.
2.Charging status display:
Our chargers offer three types of charging display methods. The basic model is using a RED/GREEN bi-color LED to indicate the charging status. For customers who need to know the state of charge (SOC) at any time, they can choose our chargers with Fuel Gauge LEDs indicator. For those who require real-time data of voltage, current, energy, SOC, SOH and timer, we offer charger products with an LCD screen display.
3.Safety protections:
Safety is a critical aspect of LFP battery chargers. Mian of our battery chargers provide protections against overvoltage, undervoltage, overcurrent, overtemperature, short-circuit, battery reversed conditions.
4.EMC & LVD approval:
All of our battery chargers passed basic EMC & LVD safety approval requirements. Many chargers have CE, CB, FCC, CCC, ETL, PSE, UKCA, cTUVus, SAA, KC and RCM.

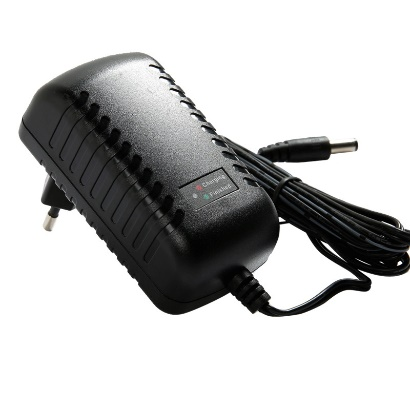

P2012-xx 20W LiFePO4 battery charger | ||
| Input feature | AC 100~240V 50~60Hz 0.5A |
Output feature & suit battery | P2012-F2: 7.2V 2.0A, suit 2s LFP 2~20Ah P2012-F4, 14.4V 1.5A, suit 4s LFP 2~15Ah | |
Power efficiency | 83% | |
Charge Curve | constant current + constant voltage | |
Charge Display | Bi-color LED, RED charging, GREEN full/idle | |
Size & Weight | 83 x 43 x 30mm/120g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | TUV, CE, cTUVus, PSE | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC plug type: US, VDE, PSE, CCC; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger. | ||

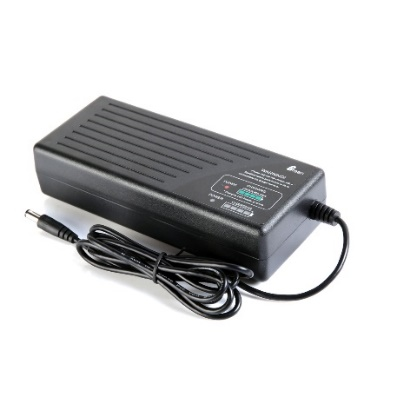

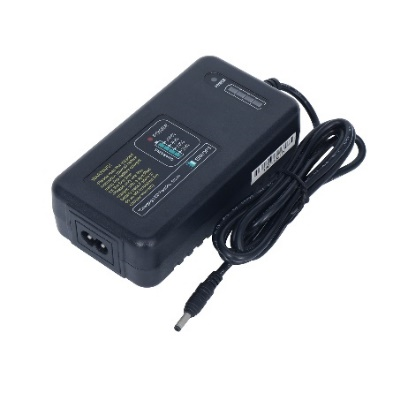

G60-xx 50W LiFePO4 battery charger with SOC level display | ||
| Input feature | AC 100~240V 50~60Hz 1.0A |
Output feature & suit battery | G60-12F4: 14.4V 3.3A, suit 4s LFP 3~33Ah G60-24F8: 28.8V 1.5A, suit 8s LFP 2~15Ah | |
Power efficiency | 83% | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | Four LEDs to indicate battery SOC (capacity level) | |
Size & Weight | 120 x 67 x 38mm/270g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | CCC, CE, cTUVus, FCC, PSE | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger. | ||

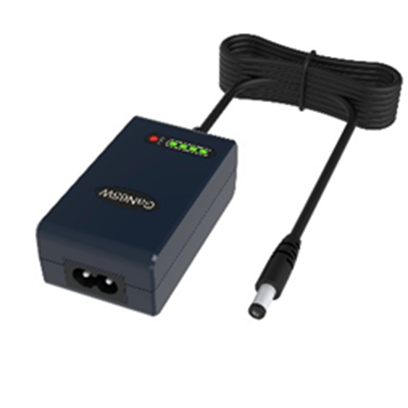

GaN065-xxxyyy 50W LiFePO4 battery charger with SOC level display | ||
| Input feature | AC 100~240V 50~60Hz 1.0A |
Output feature & suit battery | GaN065-072050: 7.2V 5.0A, suit 2s LFP 5~50Ah GaN065-144033: 14.4V 3.3A, suit 4s LFP 3~33Ah GaN065-180029: 18.0V 2.9A, suit 5s LFP 2~29Ah GaN065-216024: 21.6V 2.4A, suit 6s LFP 2~24Ah GaN065-288018, 28.8V 1.8A, suit 8s LFP 2~18Ah | |
Power efficiency | 90% (GaN solution, compact size) | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | Four LEDs to indicate battery SOC (capacity level) | |
Size & Weight | 75 x 43 x 28mm/100g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | CE, FCC | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger | ||

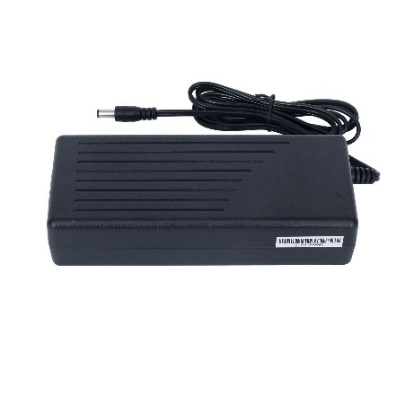

G100-xx 90W LiFePO4 battery charger with SOC level | ||
| Input feature | AC 100~240V 50~60Hz 1.5A |
Output feature & suit battery | G100-12F4 14.4V 5.0A, suit 4s LFP 5~50Ah G100-24L, 28.8V 2.8A, suit 8s LFP 3~28Ah G100-36L: 43.2V 1.8A, suit 12s LFP 2~18Ah G100-48L, 57.6V 1.5A, suit 16s LFP 2~15Ah | |
Power efficiency | 83% | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | Four LEDs to indicate battery SOC (capacity level) | |
Size & Weight | 175 x 72 x 40mm/400g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | CCC, CE, cTUVus, FCC, PSE | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger | ||

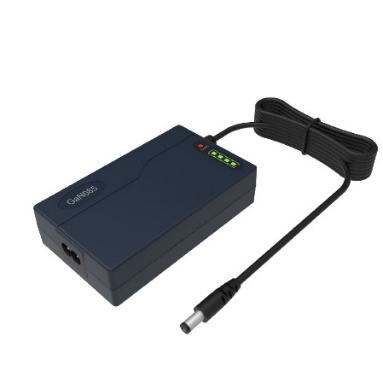

GaN085-xxxyyy 85W LiFePO4 battery charger with SOC level | ||
| Input feature | AC 100~240V 50~60Hz 1.5A |
Output feature & suit battery | GaN085-144050: 14.4V 5.0A, suit 4s LFP 5~50Ah GaN085-216040, 21.6V 4.0A, suit 6s LFP 4~40Ah GaN085-252030: 25.2V 3.0A, suit 7s LFP 3~30Ah GaN065-288029, 28.8V 2.9A, suit 8s LFP 3~30Ah GaN065-432020, 43.2V 2.0A, suit 12s LFP 2~20Ah | |
Power efficiency | 90% (GaN solution, compact size) | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | Four LEDs to indicate battery SOC (capacity level) | |
Size & Weight | 114 x 68 x 29mm/350g | |
Protections | OCP, OVP,short circuit, battery reversed | |
Safety & EMC | CE, FCC | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger | ||
G168-xxxyyy 168W LiFePO4 battery charger | ||
| Input feature | AC 100~240V 50~60Hz 2.0A, PF>0.95 |
Output feature & suit battery | G168-144110: 14.4V 11A, suit 4s LFP 10~100Ah G168-216070: 21.6V 7A, suit 6s LFP 7~70Ah G168-252060: 25.6V 6A, suit 7s LFP 6~60Ah G168-288058, 28.8V 5.8A, suit 8s LFP 6~60Ah G168-432038: 43.2V 3.8A, suit 12s LFP 4~40Ah G168-576280: 58.8V 2.8A, suit 16s LFP 3~28Ah | |
Power efficiency | 92% | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | Bi-color LED, RED charging, GREEN full/idle | |
Size & Weight | 175 x 72 x 40mm/700g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | cTUVus, CCC, TUV, CE, CB, RCM, PSE, FCC, KC | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C8 type; DC type: 5.5*2.5*12mm barrel plug | |
Click here to learn more details information about this charger | ||

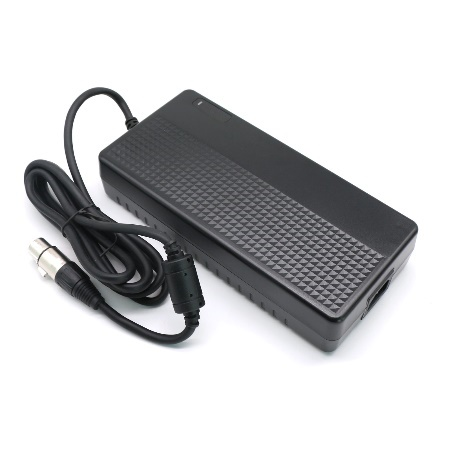

G168-xxxyyy 168W LiFePO4 battery charger | ||
| Input feature | AC 100~240V 50~60Hz 3.5A, PF>0.95 |
Output feature & suit battery | G300-144180: 14.4V 18A, suit 4s LFP 20~180Ah G300-256110, 25.6V 11A, suit 7s LFP 11~110Ah G300-288100, 28.8V 10A, suit 8s LFP 10~100Ah G300-294100, 29.4V 10A, suit 7s Li-ion 10~100Ah G300-432070: 43.2V 7.0A, suit 12s LFP 7~70Ah G300-576050: 57.6V 5.0A, suit 16s LFP 5~50Ah | |
Power efficiency | 92% | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | Bi-color LED, RED charging, GREEN full/idle | |
Size & Weight | 220 x 105 x 43mm/1300g | |
Protections | OCP, OVP, short circuit, battery reversed | |
Safety & EMC | CB, cTUVus, CE, FCC | |
Housing & cooling | ABS+PC plastic housing, natural cooling (without fan) | |
Input & output type | AC inlet ICE-320-C14 type; DC type: SB-50/XT-60 | |
Click here to learn more details information about this charger | ||

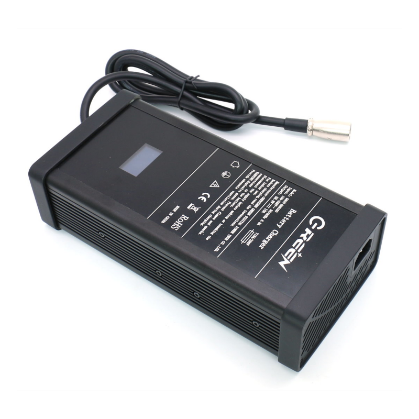

G600-xxxyyy 600W LiFePO4 battery charger with LCD display | ||
| Input feature | AC 100~240V 50~60Hz 7A, PF>0.95 |
Output feature & suit battery | G600-144330: 14.4V 33A, suit 4s LFP 33~330Ah G600-288200, 28.8V 20A, suit 8s LFP 20~200Ah G600-432142: 43,2V 14A, suit 12s LFP 14~140Ah G600-576100, 57.6V 10A, suit 16s LFP 10~100Ah | |
Power efficiency | 92% | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | LCD digital display show voltage, current, capacity, SOC, SOH and run time | |
Size & Weight | 240x 117 x 66mm/1500g | |
Protections | OCP, OVPOTP, short circuit, battery reversed | |
Safety & EMC | CB, cTUVus, CE, FCC | |
Housing & cooling | Aluminum Alloy housing, FAN cooling, | |
Input & output type | AC inlet ICE-320-C14 type; DC type: XT-60 | |
Communication port: CAN ( Click here to learn more details information) | ||

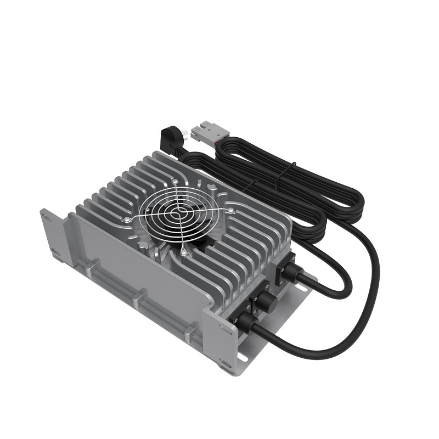

WP800-xxxyyy 800W LiFePO4 battery charger (IP67 Waterproof) | ||
| Input feature | AC 100~240V 50~60Hz 8A, PF>0.95 |
Output feature & suit battery | WP800-144400: 14.4V 40A, suit 4s LFP 40~400Ah WP800-288250: 28.8V 25A, suit 8s LFP 25~250Ah WP800-432180: 43.2V 18A, suit 12s LFP 18~180Ah WP800-576140: 57.6V 14A, suit 16s LFP 14~140Ah WP800-720110: 72.0V 11A, suit 20s LFP 11~110Ah | |
Power efficiency | 92% | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | Three-color LED indicate charging status | |
Size & Weight | 288x 130 x 82mm/2500g | |
Protections | OCP, OVP, short circuit, battery reversed,waterproof | |
Safety & EMC | CE, FCC | |
Housing & cooling | Aluminum Alloy casting housing, FAN cooling, IP67 class | |
Input & output type | AC plug type: US, EU, PSE, CCC; DC type: XT-90 | |
Communication port: CAN ( Click here to learn more details information) | ||

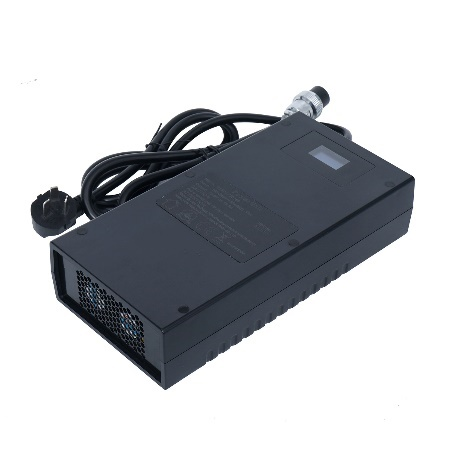

G1200-xxxyyy 1200W LiFePO4 battery charger with LCD display | ||
| Input feature | AC 100~240V 50~60Hz 13A, PF>0.95 |
Output feature & suit battery | G1200-288360: 28.8V 36A, suit 8s LFP 36~360Ah G1200-432280: 43.2V 28A, suit 12s LFP 28~280Ah G1200-576200: 57.6V 20A, suit 16s LFP 20~200Ah G1200-720160: 72.0V 16A, suit 20s LFP 16~160Ah G1200-864200: 86.4V 13.5A, suit 24s LFP 14~140Ah | |
Power efficiency | 92% | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | LCD digital display show voltage, current, capacity, SOC, SOH and run time | |
Size & Weight | 265x 134 x 60mm/2500g | |
Protections | OCP, OVPOTP, short circuit, battery reversed | |
Safety & EMC | CB, cTUVus, CE, FCC | |
Housing & cooling | Aluminum Alloy housing, FAN cooling, | |
Input & output type | AC inlet ICE-320-C14 type; DC type: SB-50 | |
Communication port: CAN ( Click here to learn more details information) | ||

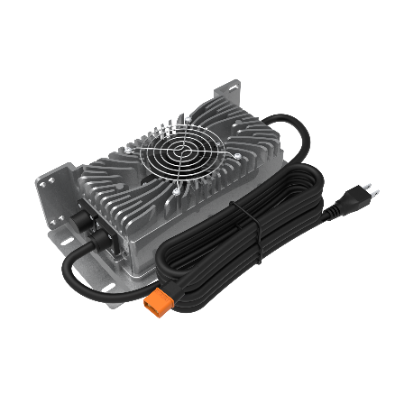

WP1800-xxxyyy 1800W LiFePO4 battery charger (IP67 Waterproof) | ||
| Input feature | AC 100~240V 50~60Hz 16A, PF>0.95 |
Output feature & suit battery | WP1800-288500: 28.8V 50A, suit 8s LFP 50~500Ah WP1800-432400: 43.2V 40A, suit 12s LFP 40~400Ah WP1800-576300: 57.6V 30A, suit 16s LFP 30~300Ah WP1800-720250: 72.0V 25A, suit 20s LFP 25~250Ah WP1800-864200, 86.4V 20A, suit 24s LFP 20~200Ah | |
Power efficiency | 92% | |
Charge Curve | pre-charge + C.C. charge + C.V. charge + cut-off | |
Charge Display | Three-color LED indicate charging status | |
Size & Weight | 288x 168 x 89mm/4300g | |
Protections | OCP, OVP, short circuit, battery reversed, waterproof | |
Safety & EMC | CE, FCC | |
Housing & cooling | Aluminum Alloy casting housing, FAN cooling, IP67 class | |
Input & output type | AC plug type: US, EU, PSE, CCC; DC type: Anderson SB-50 | |
Communication port: CAN ( Click here to learn more details information) | ||
Green Digital Power Tech is a factory specializing in the production of battery chargers, power adapters and Battery Testers. It is a professional LiFePO4 battery charger supplier.
