Specifications
Rated input: 100~240V 50/60Hz
High Power Factor: > 0.98
Rated output: 24V~88V 600W, see the attached table for details
High effiency: 95%@220V input, full load output
Suitable batteries: Lead-acid batteries, Li-ion batteries, LiFePO4 batteries

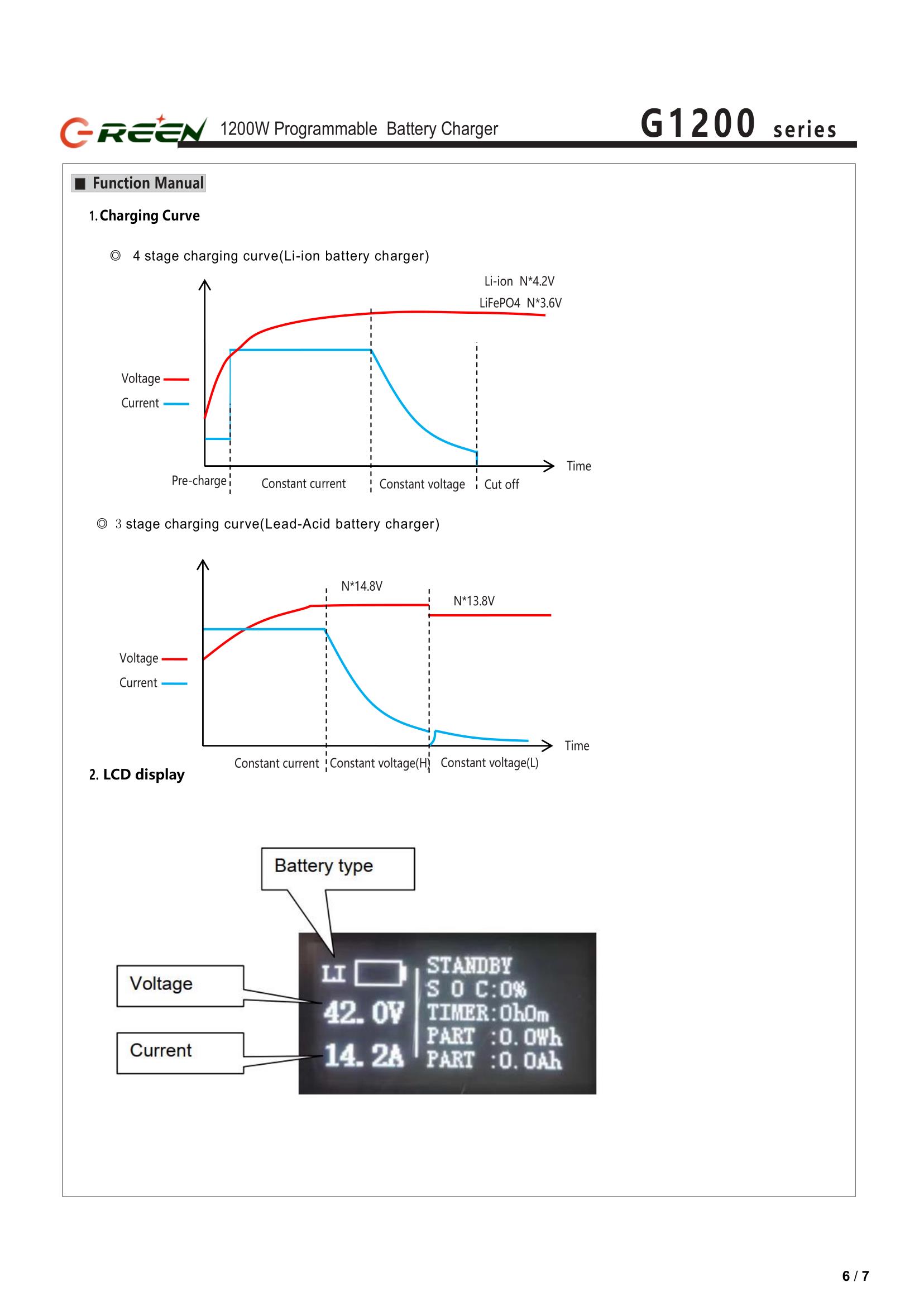

Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4;
"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.
Charging indication: LCD shows voltage, current,capacity, and preset voltage and current
Output protection: overcurrent, overvoltage, short circuit, reverse connection protection
Communication: CAN and USB ports are default, RS485 is optional
Safety certification: cTUVus, CE, CB
Dimensions Weight: 265x 134 x 60mm/2300g

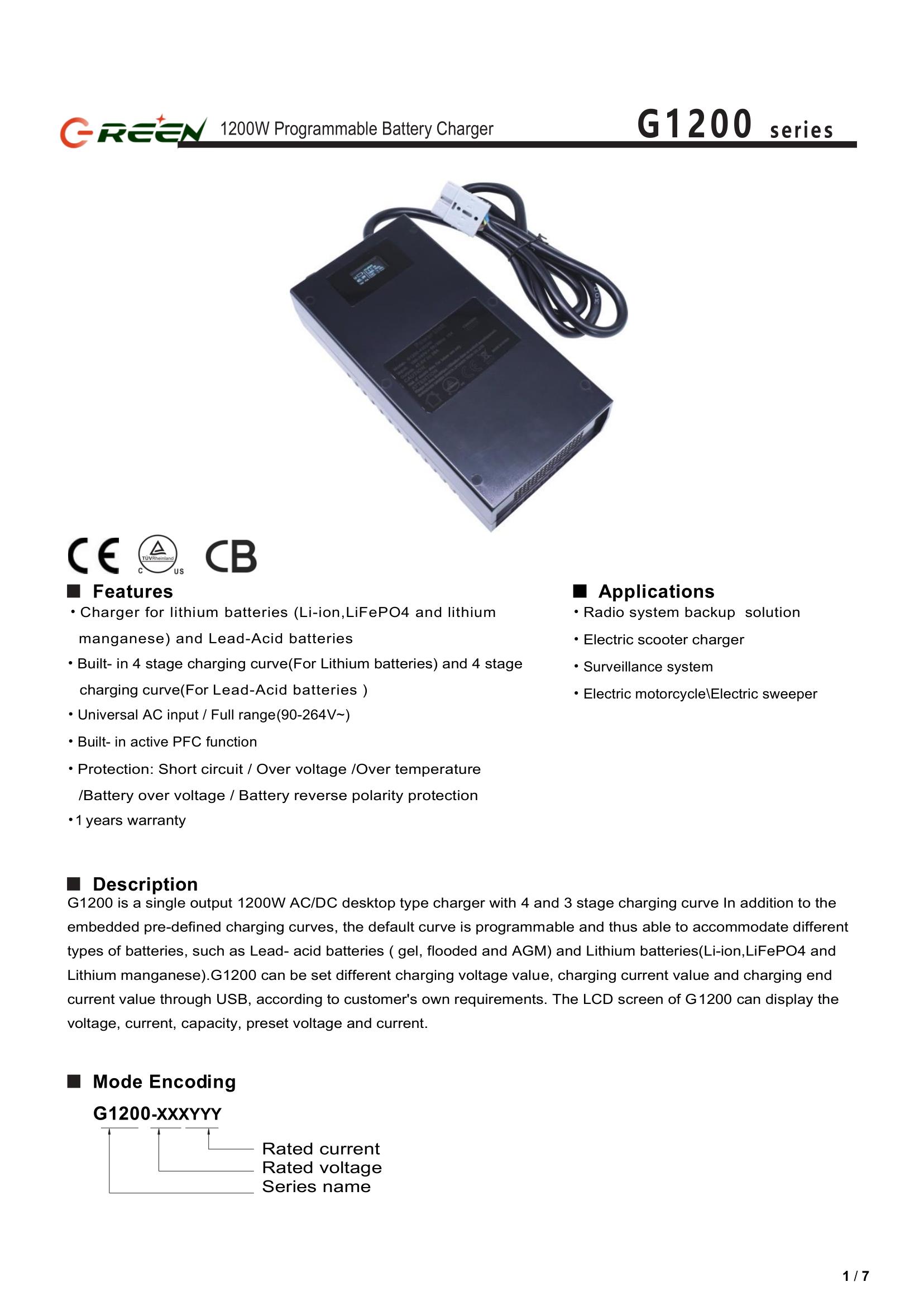

Product features:

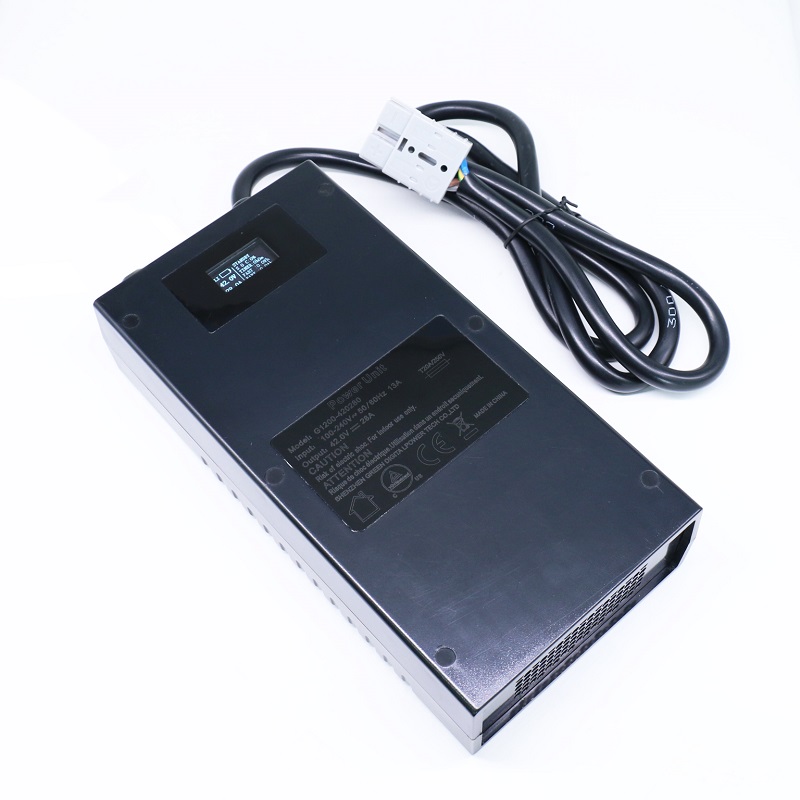

G1200 is a single output 1200 Ｗ AC/DC desktop type charger with 4 and 3 stage charging curve In addition to the embedded pre-defined charging curves,the default curve is programmable and thus able to accommodate different types of batteries,such as Lead- acid batteries ( SLA, VRLA, GEL, AGM) and Lithium batteries(Li-ion,LiFePO4 and Lithium manganese). G1200 can be set different charging voltage value, charging current value and charging end current value through USB, according to customer's own requirements. The LCD screen of G1200 can display the voltage, current,capacity, and preset voltage and current.
Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.
1200W output power, 95% high power effiency, and 0.98 power factor for AC power line
Suitable for 4 to 20 series Li-Ion / LiFePO4 batteries, 12V~60V Pb-Acid (SLA, VRLA, AGM, GEL).
Multiple protections for overcurrent, overvoltage, and short circuit error.
LCD shows voltage, current,capacity, and preset voltage and current
Safety certifications, cTUVus, CB, CE
Detailed technical indicators:
Rated input: 100~240V
Rated output: 12V~75V 1200W, see the attached table for output voltage and current of each model
Suitable batteries: 24V~72V li-ion, LiFePO4 battery, 24V~72V lead-acid (VRLA, AGM, GEL) batteries
Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;
"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.
Charging indication: LCD shows voltage, current,capacity, and preset voltage and current
Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc
Power efficiency: 95% @ 220V full load output
Back Drain current: less than 1.5 mA (current flowing from battery to the charger when AC off)
Operating temperature: - 10~+40 ℃
Heat dissipation: fan cooling
AC Input plug: AC inlet ICE-320-C14 type, AC cable / plug is optional part.
DC Output plug: standard XT-60/90 plug( or SB-50), output wire AWG16/14, length 1.5m
Communication: CAN and USB ports are default, RS485 is optional
Safety certification: CE, cTUVus, CB
Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000

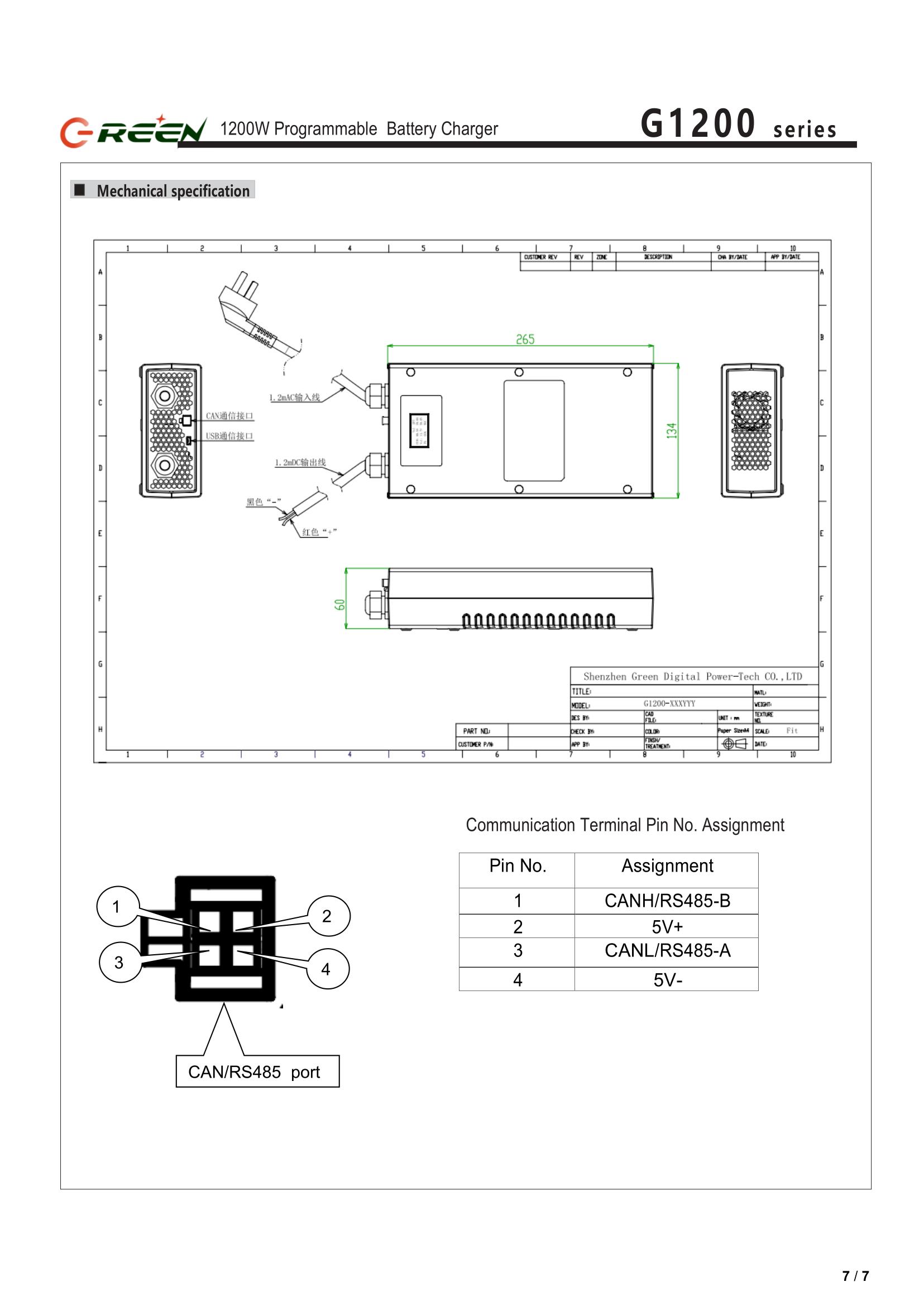

Dimensions Weight: 265x 134 x 60mm/2300g
P/N of all G1200-xy

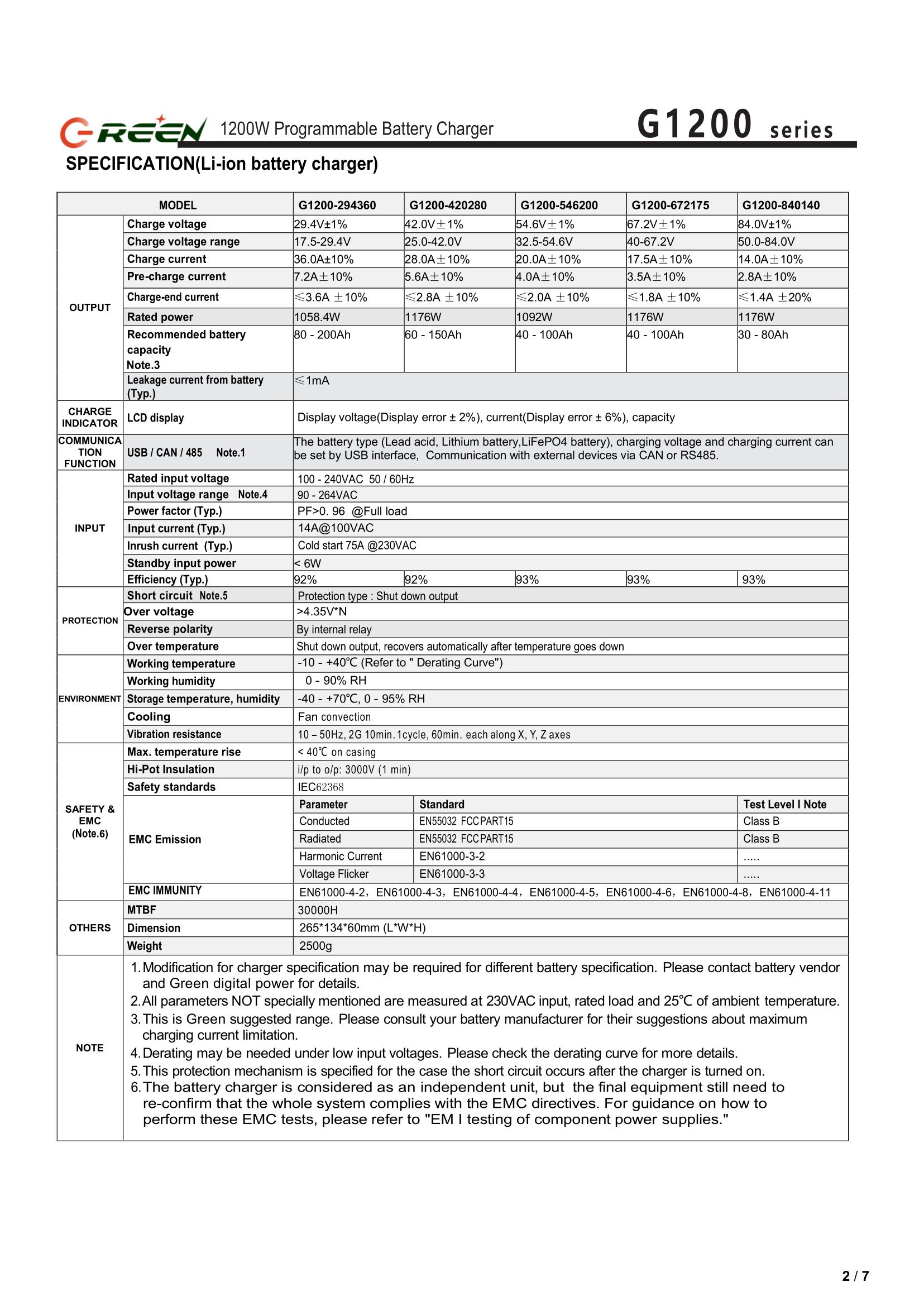

Models for Li-Ion battery charger:
| P/N | Charge Voltage | Charge Current | Cut-off current | Suitable battery |
| G1200-294360 | 29.4V +-1% | 36A +-7% | 3.6A +-0.4A | 7S LI-ION 36~360Ah |
| G1200-420280 | 42.0V +-1% | 28A +-7% | 2.8A +-0.2A | 10S LI-ION 28~280Ah |
| G1200-588200 | 58.8V +-1% | 20A +-7% | 2.0A +-0.2A | 14S LI-ION 20~200Ah |
| G1200-714160 | 71.4V +-1% | 16A +-7% | 1.6A +-0.15A | 17S LI-ION 16~160Ah |
| G1200-840140 | 84.0V +-1% | 14A +-7% | 1.4A +-0.15A | 20S LI-ION 14~140Ah |

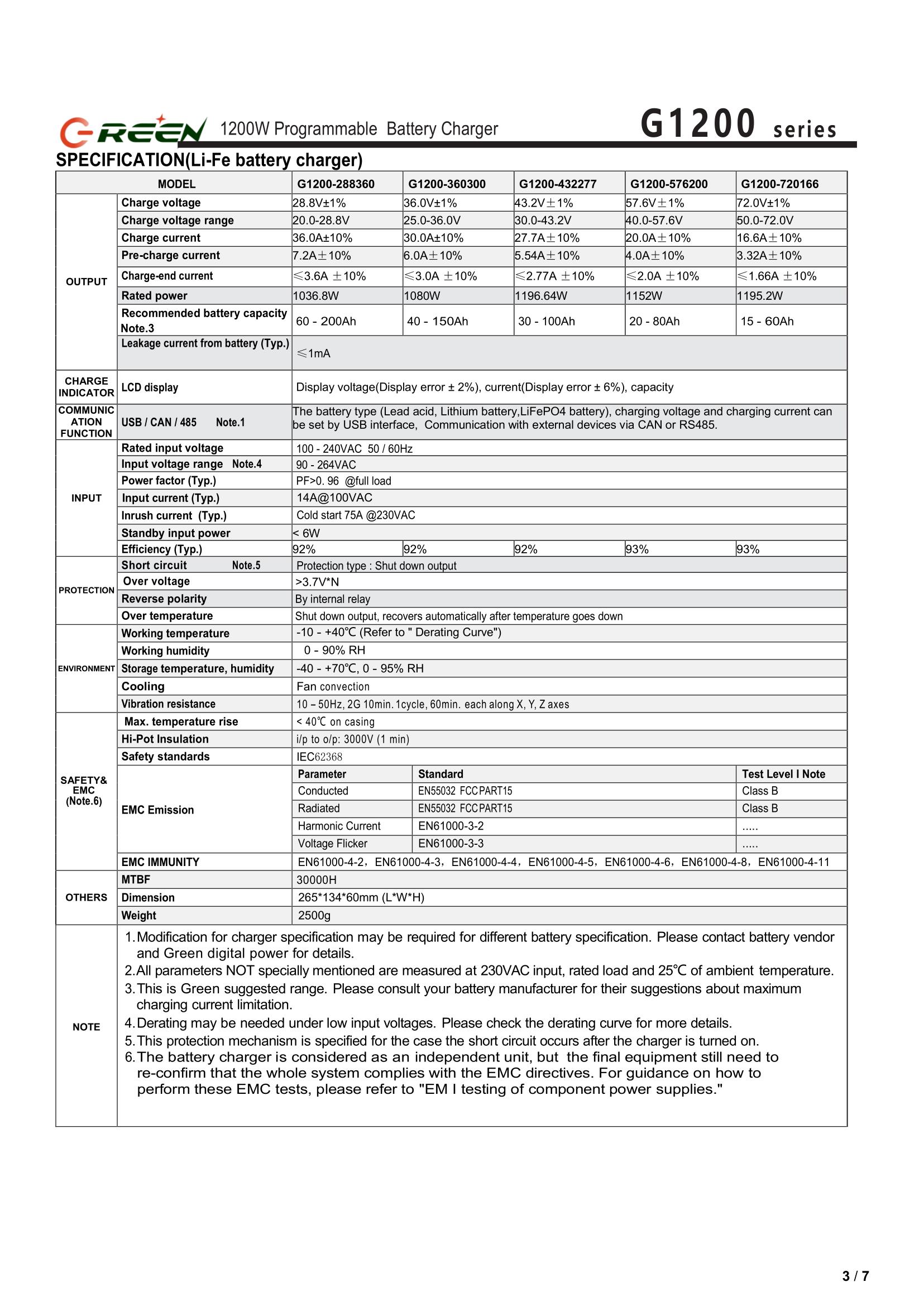

Models for LiFePO4 battery charger:
| P/N | Charge Voltage | Charge Current | Cut-off current | Suitable battery |
| G1200-288360 | 28.8V +-1% | 36A +-7% | 3.6A +-0.4A | 8S LIFEPO4, 36~360Ah |
| G1200-360300 | 36.0V +-1% | 30A +-7% | 3.0A +-0.3A | 10S LIFEPO4, 30~300Ah |
| G1200-432275 | 43.2V +-1% | 27.5A +-7% | 2.8A +-0.3A | 12S LIFEPO4, 30~300Ah |
| G1200-576200 | 57.6V +-1% | 20.0A +-7% | 2.0A +-0.2A | 16S LIFEPO4, 20~200Ah |
| G1200-720160 | 72.0V +-1% | 16.0A +-7% | 1.6A +-0.2A | 20S LIFEPO4, 16~160Ah |
| G1200-864140 | 86.4V +-1% | 14.0A +-7% | 1.4A +-0.2A | 24S LIFEPO4, 14~140Ah |

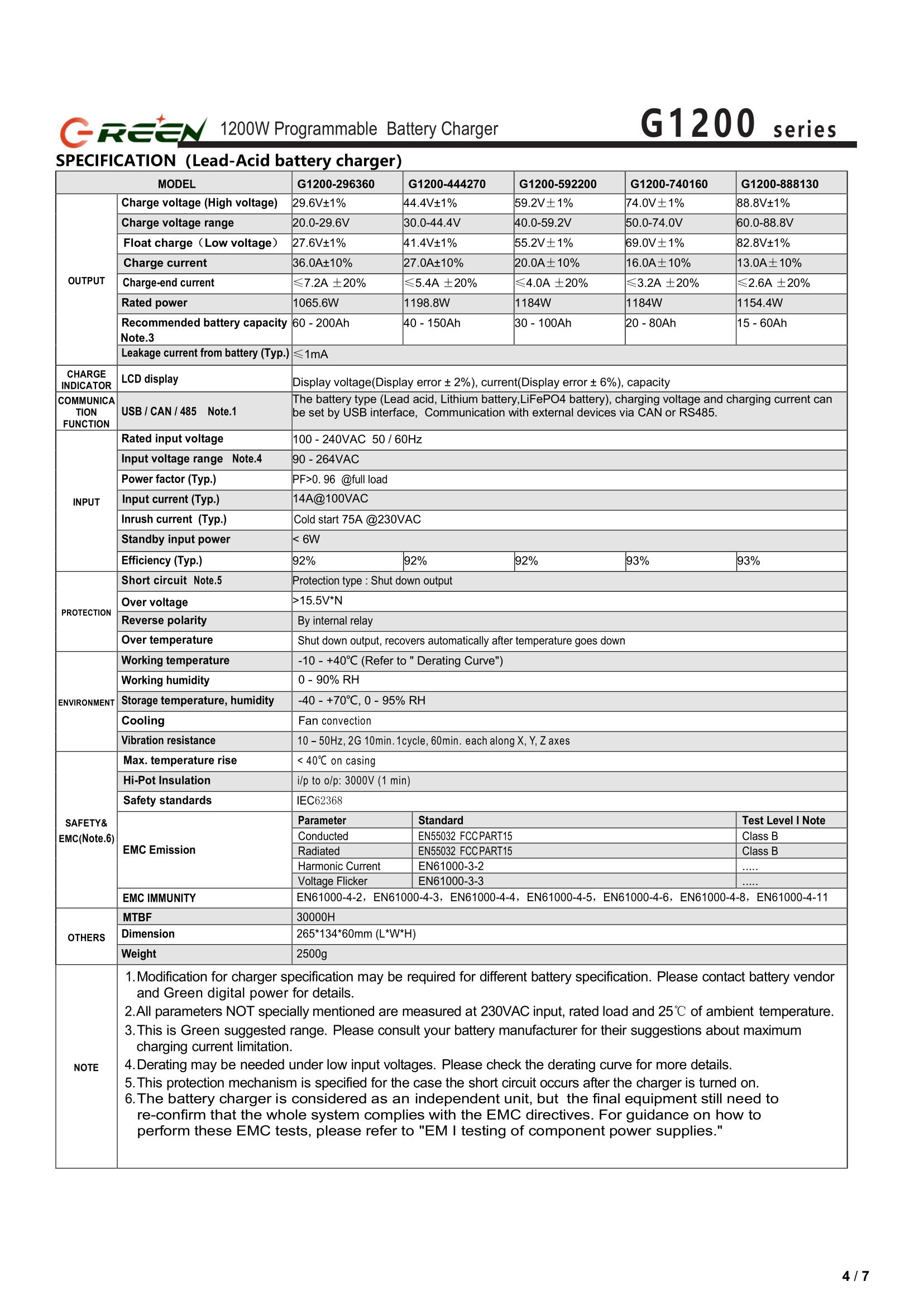

Models for Pb-Acid (VRLA, AGM, GEL, SLA) battery charger
| P/N | Charge Voltage | Charge Current | Floating voltage | Suitable battery |
| G1200-294360 | 29.4V +-1% | 36A +-7% | 27.6V +-1% | 24V 150~ 450Ah |
| G1200-441270 | 44.1V +-1% | 27A +-7% | 41.4V +-1% | 36V 100~300Ah |
| G1200-588200 | 58.8V +-1% | 20.0A +-7% | 55.2V +-1% | 48V 80~ 240Ah |
| G1200-735160 | 73.5V +-1% | 16.0A +-7% | 69.0V +-1% | 60V 70~200Ah |
| G1200-882130 | 88.2V +-1% | 13.0A +-7% | 82.8V +-1% | 72V 50~150Ah |
Details specification:
Safety Certifications (parts only)
comming soon
