Lithium-ion (Li-ion) battery charger
Lithium-ion (Li-ion) battery chargers are designed to safely and efficiently charge Li-ion batteries and LiPo batteries, which are commonly used in a variety of applications due to their high energy density, light weight, and lack of memory effect. Green Digital Power Tech provide 10+ series 100+ standard chargers for most kinds of Li-ion and LiPo batteries voltage from 3.6V to 84V, capacity from 2Ah to 200Ah, these Li-ion chargers have following common features:
1.“Two-stage” & “Four-stage” Charging Process:
The basic Li-ion charging process is “Two stages”, CC+CV. See right curve. During CC stage, the charger supplies a constant current to the battery until the voltage reaches N*4.2V. In the CV stage, the voltage is held constant, and the current gradually decreases until the battery is fully charged.

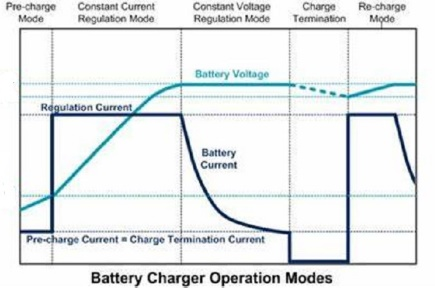

For high-performance lithium-ion battery chargers, we employ “Four-stage” charging strategy, as figure below. The “four-stage” adds a small current pre-charge stage (which helps to extend battery life) at the beginning and add a shut-off stage at the end (which helps to enhance charging safety). Our main chargers using this 4-stage charging process.
2.Charging status display:
Our chargers offer three types of charging display methods. The basic model is using a RED/GREEN bi-color LED to indicate the charging status. For customers who need to know the state of charge (SOC) at any time, they can choose our chargers with Fuel Gauge LEDs indicator. For those who require real-time data of voltage, current, energy, SOC, SOH and timer, we offer charger products with an LCD screen display.
3.Safety protections:
Safety is a critical aspect of Li-ion battery chargers. Mian of our battery chargers provide protections against overvoltage, undervoltage, overcurrent, overtemperature, short-circuit, battery reversed conditions.
4.EMC & LVD approval:
All of our battery chargers passed basic EMC & LVD safety approval requirements. Many chargers have CE, CB, FCC, CCC, ETL, PSE, UKCA, cTUVus, SAA, KC and RCM.
|

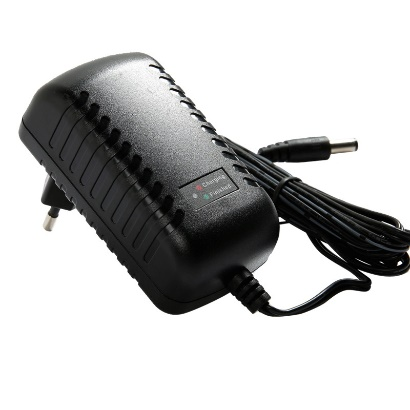

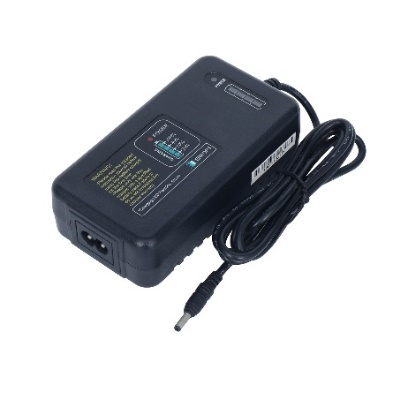

P2012-xx 20W Lithium Ion battery charger |
||
|
|
Input feature |
AC 100~240V 50~60Hz 0.5A |
|
Output feature & suit battery |
P2012-L2: 8.4V 2.0A, suit 2s Li-ion 2~20Ah P2012-L3: 16.8V 1.5A, suit 3s Li-ion 2~15Ah P2012-L4, 16.8V 1.3A, suit 4s Li-ion 2~13Ah |
|
|
Power efficiency |
83% |
|
|
Charge Curve |
constant current + constant voltage |
|
|
Charge Display |
Bi-color LED, RED charging, GREEN full/idle |
|
|
Size & Weight |
83 x 43 x 30mm/120g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
TUV, CE, cTUVus, PSE |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC plug type: US, VDE, PSE, CCC; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger. |
||
|

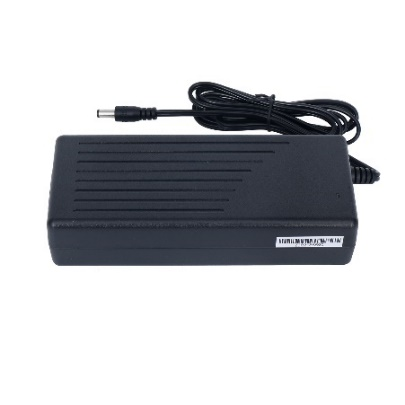

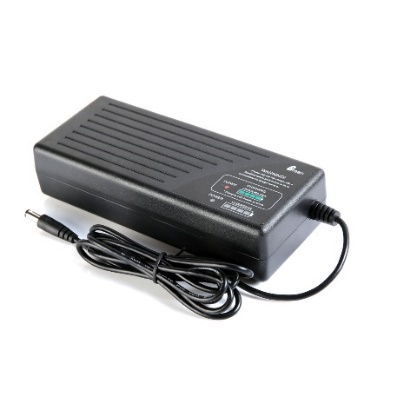

G60-xx 50W Lithium Ion charger with SOC level |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.0A |
|
Output feature & suit battery |
G60-12L3: 12.6V 3.3A, suit 3s Li-ion 3~33Ah G60-12L4: 16.8V 2.8A, suit 4s Li-ion 3~28Ah G60-12L7, 29.4V 1.8A, suit 7s Li-ion 2~18Ah |
|
|
Power efficiency |
83% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Four LEDs to indicate battery SOC (capacity level) |
|
|
Size & Weight |
120 x 67 x 38mm/270g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
CCC, CE, cTUVus, FCC, PSE |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger. |
||
|

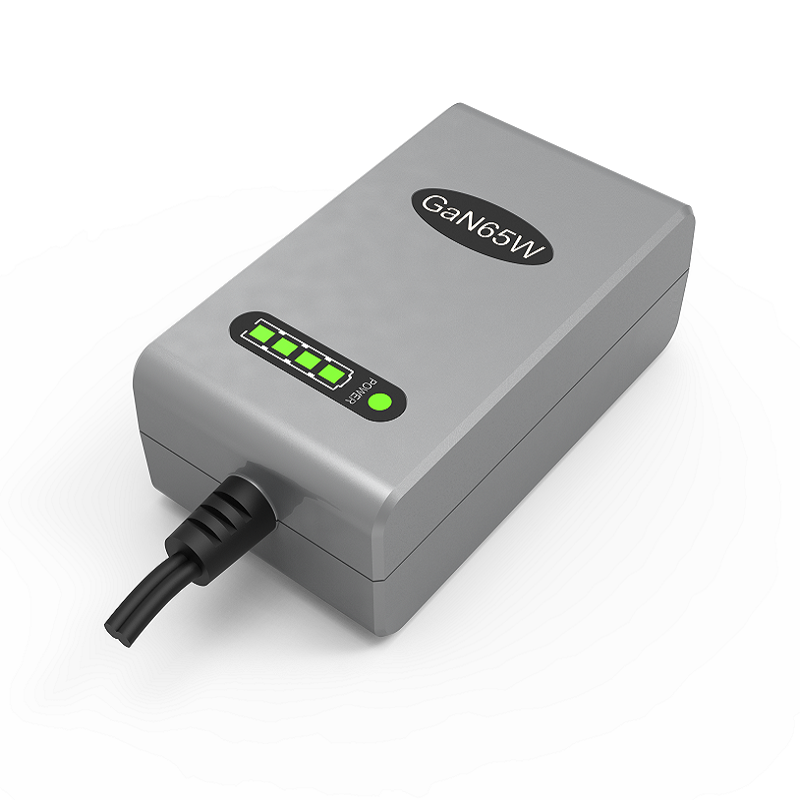

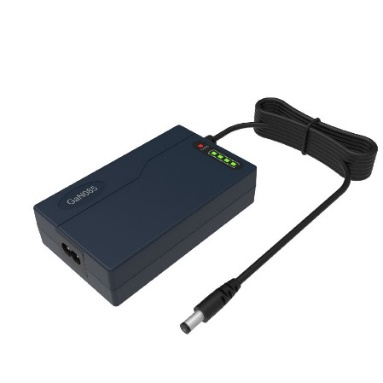

GaN065-xxxyyy 50W Lithium Ion charger with SOC level |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.0A |
|
Output feature & suit battery |
GaN065-084050: 8.4V 5.0A, suit 2s Li-ion 5~50Ah GaN065-126040: 12.6V 4.0A, suit 3s Li-ion 4~40Ah GaN065-168030: 16.8V 3.0A, suit 4s Li-ion 3~30Ah GaN065-210024: 21.0V 2.4A, suit 5s Li-ion 2~24Ah GaN065-252020: 25.2V 2.0A, suit 6s Li-ion 2~20Ah GaN065-294018, 29.4V 1.8A, suit 7s Li-ion 2~18Ah |
|
|
Power efficiency |
90% (GaN solution, compact size) |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Four LEDs to indicate battery SOC (capacity level) |
|
|
Size & Weight |
75 x 43 x 28mm/100g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|

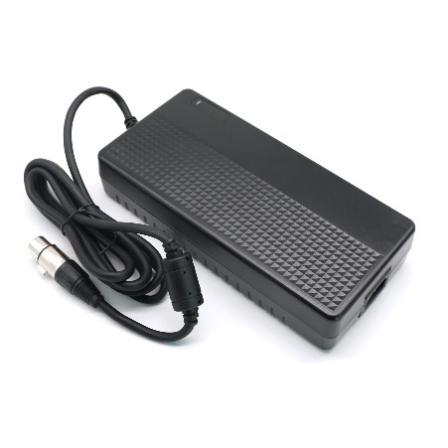

G100-xx 90W Lithium Ion charger with SOC level |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.5A |
|
Output feature & suit battery |
G100-12L3: 12.6V 5.0A, suit 3s Li-ion 5~50Ah G100-12L4: 16.8V 4.5A, suit 4s Li-ion 5~45Ah G100-24L, 29.4V 2.8A, suit 7s Li-ion 3~28Ah G100-36L: 42.0V 1.8A, suit 10s Li-ion 2~18Ah G100-48L, 58.8V 1.5A, suit 14s Li-ion 2~15Ah |
|
|
Power efficiency |
83% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Four LEDs to indicate battery SOC (capacity level) |
|
|
Size & Weight |
175 x 72 x 40mm/400g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
CCC, CE, cTUVus, FCC, PSE |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|

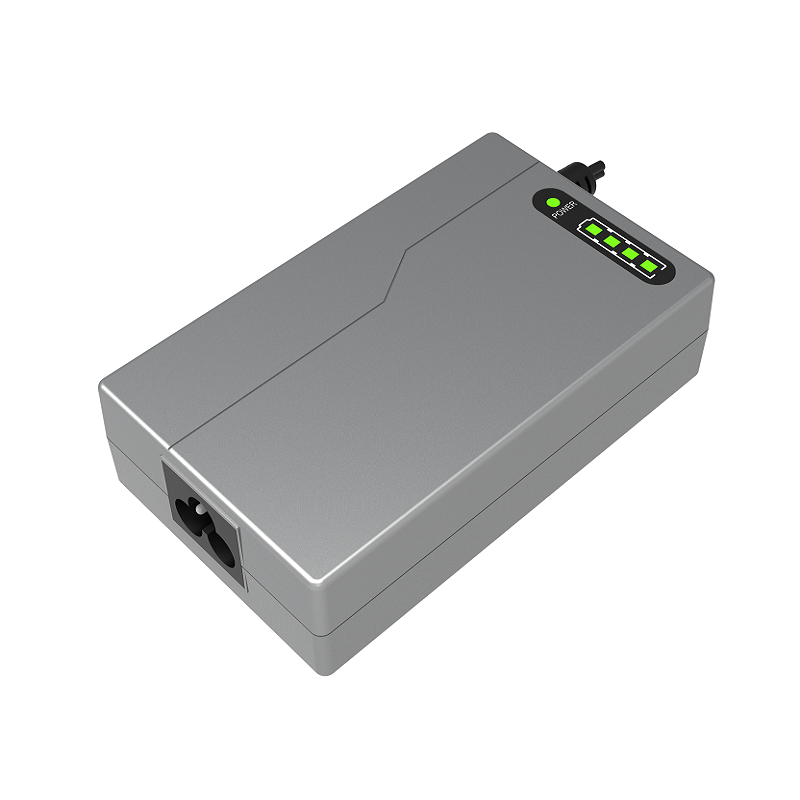

GaN085-xxxyyy 85W Lithium Ion charger with SOC level |
||
|
|
Input feature |
AC 100~240V 50~60Hz 1.5A |
|
Output feature & suit battery |
GaN085-126060: 12.6V 6.0A, suit 3s Li-ion 6~60Ah GaN085-168050: 16.8V 5.0A, suit 4s Li-ion 5~50Ah GaN085-210040, 21.0V 4.0A, suit 5s Li-ion 4~40Ah GaN085-252030: 25.2V 3.0A, suit 6s Li-ion 3~30Ah GaN065-294028, 29.4V 2.8A, suit 7s Li-ion 3~28Ah GaN065-420020, 42.0V 2.0A, suit 10s Li-ion 2~20Ah |
|
|
Power efficiency |
90% (GaN solution, compact size) |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Four LEDs to indicate battery SOC (capacity level) |
|
|
Size & Weight |
114 x 68 x 29mm/350g |
|
|
Protections |
OCP, OVP,short circuit, battery reversed |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type;; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|
G168-xxxyyy 168W Lithium Ion battery charger |
||
|
|
Input feature |
AC 100~240V 50~60Hz 2.0A, PF>0.95 |
|
Output feature & suit battery |
G168-126120: 12.6V 12A, suit 3s Li-ion 10~120Ah G168-168100: 16.8V 10A, suit 4s Li-ion 10~100Ah G168-294057, 29.4V 5.7A, suit 7s Li-ion 6~60Ah G168-420040: 42.0V 4.0A, suit 10s Li-ion 4~40Ah G168-588280: 58.8V 2.8A, suit 14s Li-ion 3~28Ah |
|
|
Power efficiency |
92% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Bi-color LED, RED charging, GREEN full/idle |
|
|
Size & Weight |
175 x 72 x 40mm/700g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
cTUVus, CCC, TUV, CE, CB, RCM, PSE, FCC, KC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C8 type; DC type: 5.5*2.5*12mm barrel plug |
|
|
Click here to learn more details information about this charger |
||
|
G168-xxxyyy 168W Lithium Ion battery charger |
||
|
|
Input feature |
AC 100~240V 50~60Hz 3.5A, PF>0.95 |
|
Output feature & suit battery |
G300-126180: 12.6V 18A, suit 3s Li-ion 20~200Ah G300-168180: 16.8V 18A, suit 4s Li-ion 20~200Ah G300-252110, 25.2V 11A, suit 6s Li-ion 11~110Ah G300-294100, 29.4V 10A, suit 7s Li-ion 10~100Ah G300-420070: 42.0V 7.0A, suit 10s Li-ion 7~70Ah G300-588050: 58.8V 5.0A, suit 14s Li-ion 5~50Ah |
|
|
Power efficiency |
92% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Bi-color LED, RED charging, GREEN full/idle |
|
|
Size & Weight |
220 x 105 x 43mm/1300g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed |
|
|
Safety & EMC |
CB, cTUVus, CE, FCC |
|
|
Housing & cooling |
ABS+PC plastic housing, natural cooling (without fan) |
|
|
Input & output type |
AC inlet ICE-320-C14 type; DC type: SB-50/XT-60 |
|
|
Click here to learn more details information about this charger |
||
|

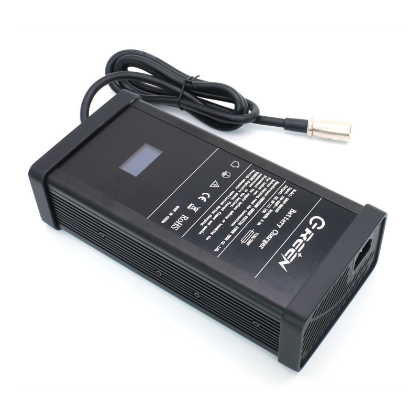

G600-xxxyyy 600W Lithium Ion battery charger |
||
|
|
Input feature |
AC 100~240V 50~60Hz 7A, PF>0.95 |
|
Output feature & suit battery |
G600-168330: 16.8V 33A, suit 4s Li-ion 33~330Ah G600-252240, 25.2V 24A, suit 6s Li-ion 24~240Ah G600-294200, 29.4V 20A, suit 7s Li-ion 20~200Ah G600-420142: 42.0V 14A, suit 10s Li-ion 14~140Ah G600-504120: 50.4V 12A, suit 12s Li-ion 10~120Ah G600-588100, 58.8V 10A, suit 14s Li-ion 10~100Ah |
|
|
Power efficiency |
92% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
LCD digital display show voltage, current, capacity, SOC, SOH and run time |
|
|
Size & Weight |
240x 117 x 66mm/1500g |
|
|
Protections |
OCP, OVPOTP, short circuit, battery reversed |
|
|
Safety & EMC |
CB, cTUVus, CE, FCC |
|
|
Housing & cooling |
Aluminum Alloy housing, FAN cooling, |
|
|
Input & output type |
AC inlet ICE-320-C14 type; DC type: XT-60 |
|
|
Communication port: CAN ( Click here to learn more details information) |
||
|

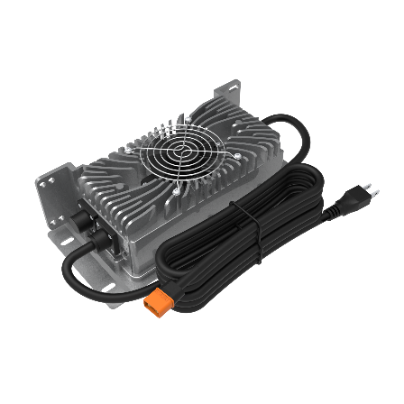

WP800-xxxyyy 800W Lithium Ion battery charger (IP67 Waterproof) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 8A, PF>0.95 |
|
Output feature & suit battery |
WP800-126400: 12.6V 40A, suit 3s Li-ion 40~400Ah WP800-168400: 16.8V 40A, suit 4s Li-ion 40~400Ah WP800-294250: 29.4V 25A, suit 7s Li-ion 25~250Ah WP800-420180: 42.0V 18A, suit 10s Li-ion 18~180Ah WP800-588140: 58.8V 14A, suit 14s Li-ion 14~140Ah WP800-840100: 84.0V 10A, suit 20s Li-ion 10~100Ah |
|
|
Power efficiency |
92% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Three-color LED indicate charging status |
|
|
Size & Weight |
288x 130 x 82mm/2500g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed,waterproof |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
Aluminum Alloy casting housing, FAN cooling, IP67 class |
|
|
Input & output type |
AC plug type: US, EU, PSE, CCC; DC type: XT-90 |
|
|
Communication port: CAN ( Click here to learn more details information) |
||
|

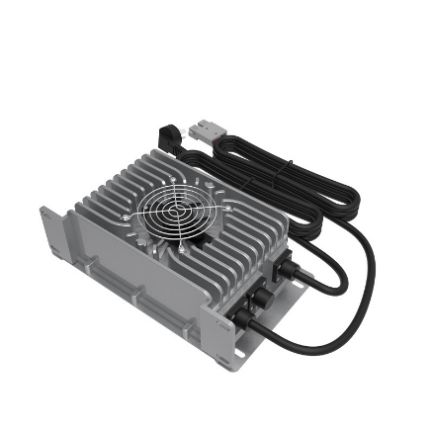

G1200-xxxyyy 1200W Lithium Ion battery charger |
||
|
|
Input feature |
AC 100~240V 50~60Hz 13A, PF>0.95 |
|
Output feature & suit battery |
G1200-294360: 29.4V 36A, suit 7s Li-ion 36~360Ah G1200-420280: 42.0V 28A, suit 10s Li-ion 28~280Ah G1200-504200: 50.4V 20A, suit 12s Li-ion 20~200Ah G1200-546200: 54.6V 20A, suit 13s Li-ion 20~200Ah G1200-588200: 58.8V 20A, suit 14s Li-ion 20~200Ah |
|
|
Power efficiency |
92% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
LCD digital display show voltage, current, capacity, SOC, SOH and run time |
|
|
Size & Weight |
265x 134 x 60mm/2500g |
|
|
Protections |
OCP, OVPOTP, short circuit, battery reversed |
|
|
Safety & EMC |
CB, cTUVus, CE, FCC |
|
|
Housing & cooling |
Aluminum Alloy housing, FAN cooling, |
|
|
Input & output type |
AC inlet ICE-320-C14 type; DC type: SB-50 |
|
|
Communication port: CAN ( Click here to learn more details information) |
||
|
WP1800-xxxyyy 1800W Lithium Ion battery charger (IP67 Waterproof) |
||
|
|
Input feature |
AC 100~240V 50~60Hz 16A, PF>0.95 |
|
Output feature & suit battery |
WP1800-294500: 29.4V 50A, suit 7s Li-ion 50~500Ah WP1800-420400: 42.0V 40A, suit 10s Li-ion 40~400Ah WP1800-504300: 50.4V 30A, suit 12s Li-ion 30~300Ah WP1800-546300: 54.6V 30A, suit 13s Li-ion 30~300Ah WP1800-588300: 58.8V 30A, suit 14s Li-ion 30~300Ah WP1800-840200, 84.0V 20A, suit 20s L-ion 20~200Ah |
|
|
Power efficiency |
92% |
|
|
Charge Curve |
pre-charge + C.C. charge + C.V. charge + cut-off |
|
|
Charge Display |
Three-color LED indicate charging status |
|
|
Size & Weight |
288x 168 x 89mm/4300g |
|
|
Protections |
OCP, OVP, short circuit, battery reversed, waterproof |
|
|
Safety & EMC |
CE, FCC |
|
|
Housing & cooling |
Aluminum Alloy casting housing, FAN cooling, IP67 class |
|
|
Input & output type |
AC plug type: US, EU, PSE, CCC; DC type: Anderson SB-50 |
|
|
Communication port: CAN ( Click here to learn more details information) |
||
