PD140

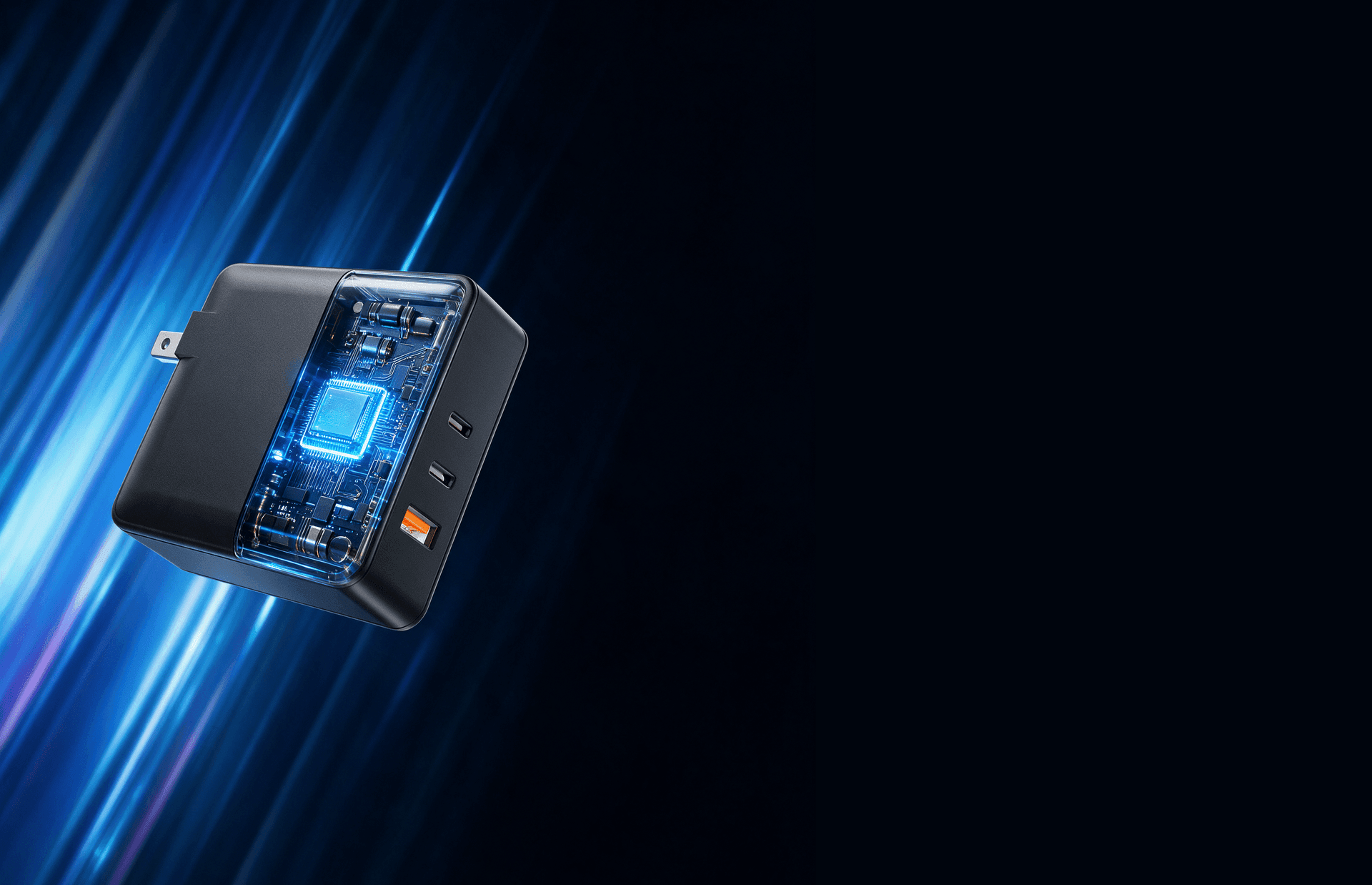

140W GaN-based USB-C PD power supply with two USB-C ports and one USB-A port, supporting PD 3.0/3.1 EPR up to 28V for laptops, drones and power tools.
140W.
In your hands.

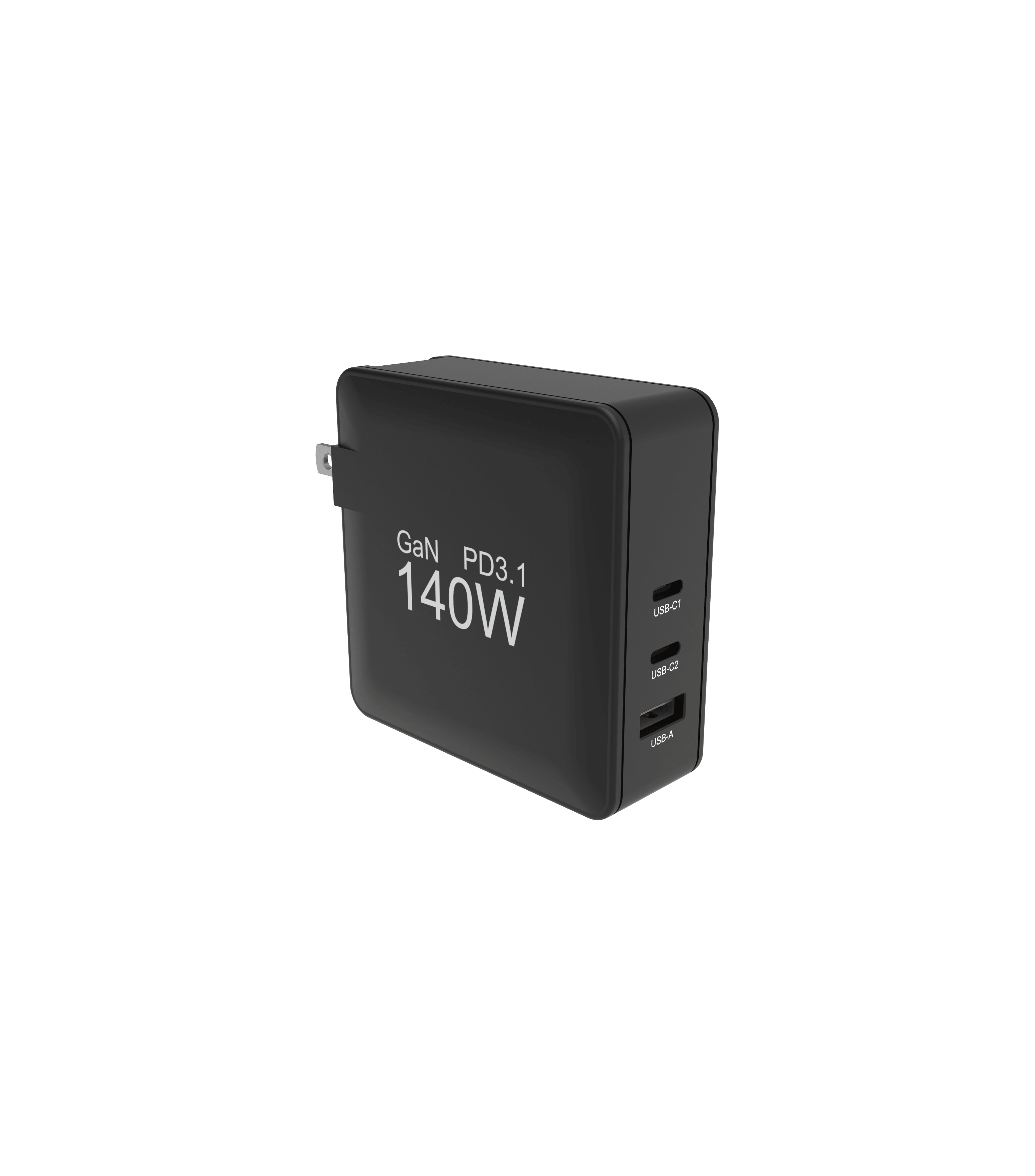

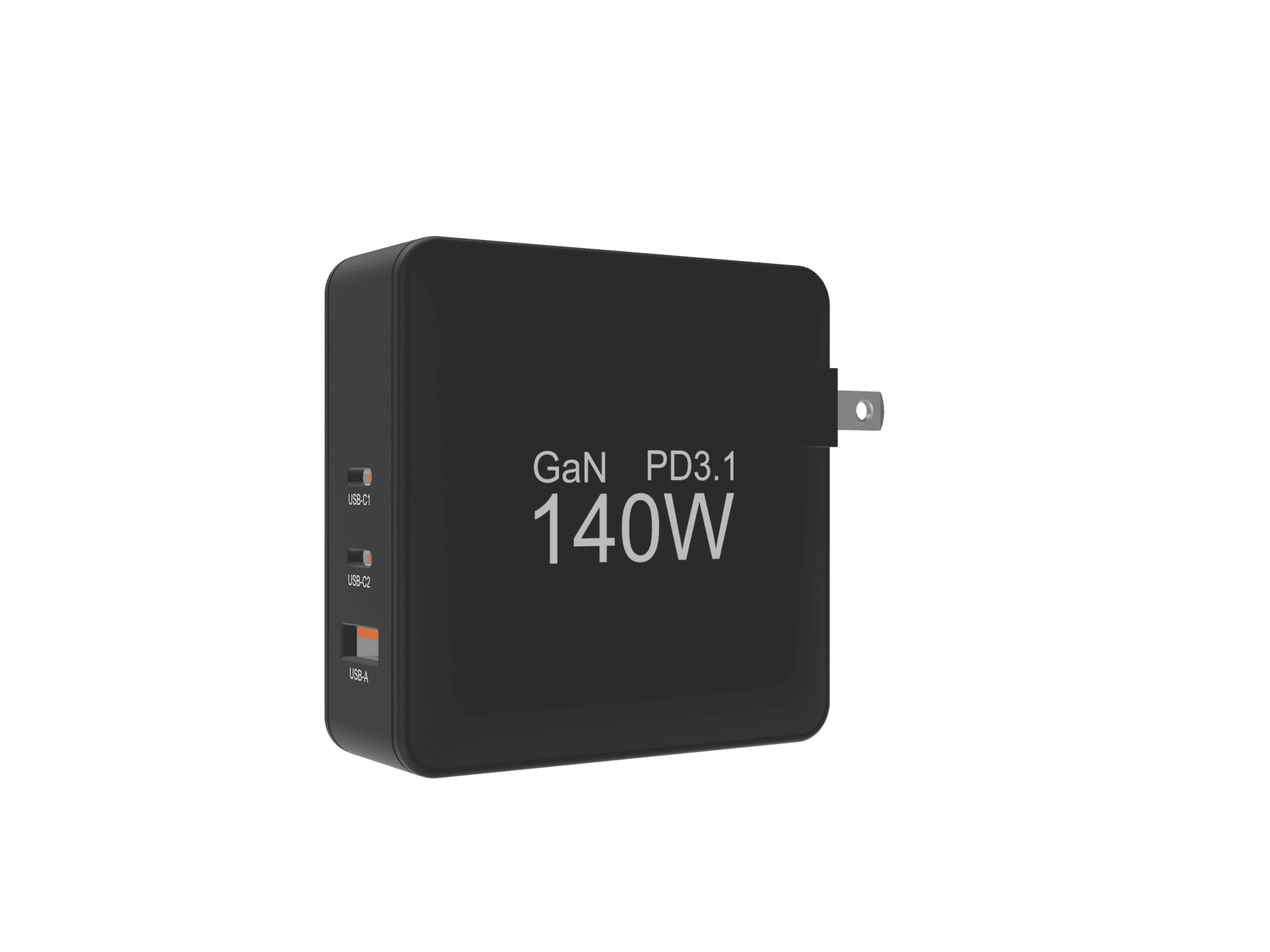

PD140-2C1A is a 140W GaN USB-C PD power supply with two USB-C ports (140W + 65W) and one USB-A port (18W), universal 90–264VAC input and active PFC.
Big power.
Compact footprint.
140W GaN-based USB-C PD power supply with two USB-C ports and one USB-A port, supporting PD 3.0/3.1 EPR up to 28V for laptops, drones and power tools. Engineered for reliable output where space, weight and thermal headroom matter.
GaN Inside.
High power, compact port.
Built on GaN technology, it supports PD3.0/PD3.1 EPR protocols up to 28V/5A. Single-port full load 140W, with multi-port simultaneous output totaling up to 140W — easily fast-charging high-performance laptops and getting high-power devices back online quickly.
One Charger,
Multiple Devices.

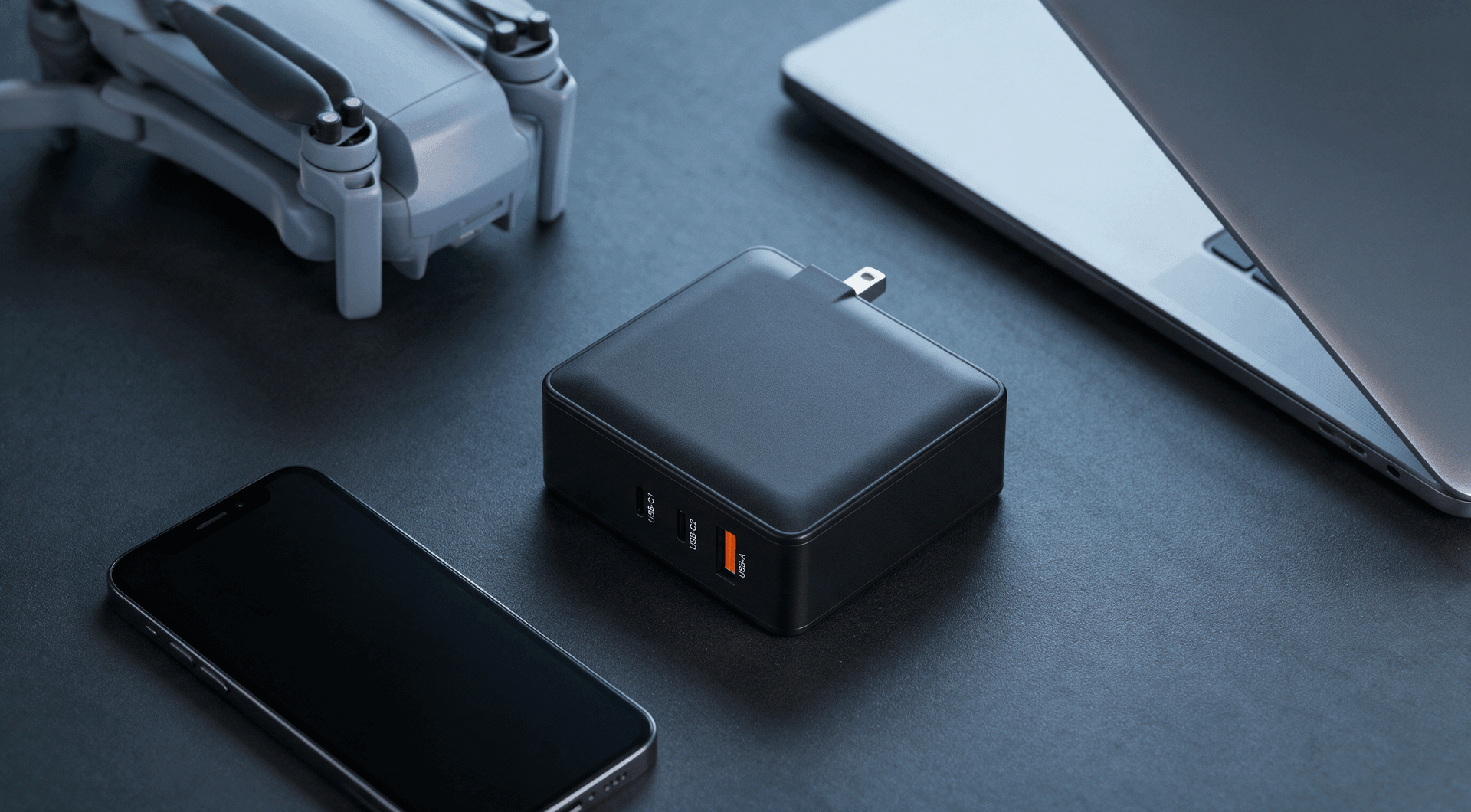

2×Type‑C + 1×USB‑A multi-port design; C2 up to 65W, A port 18W. Charge your laptop, phone and tablet simultaneously — no need to carry multiple chargers, at home or on the go.
Worldwide Ready.
Efficient by design.

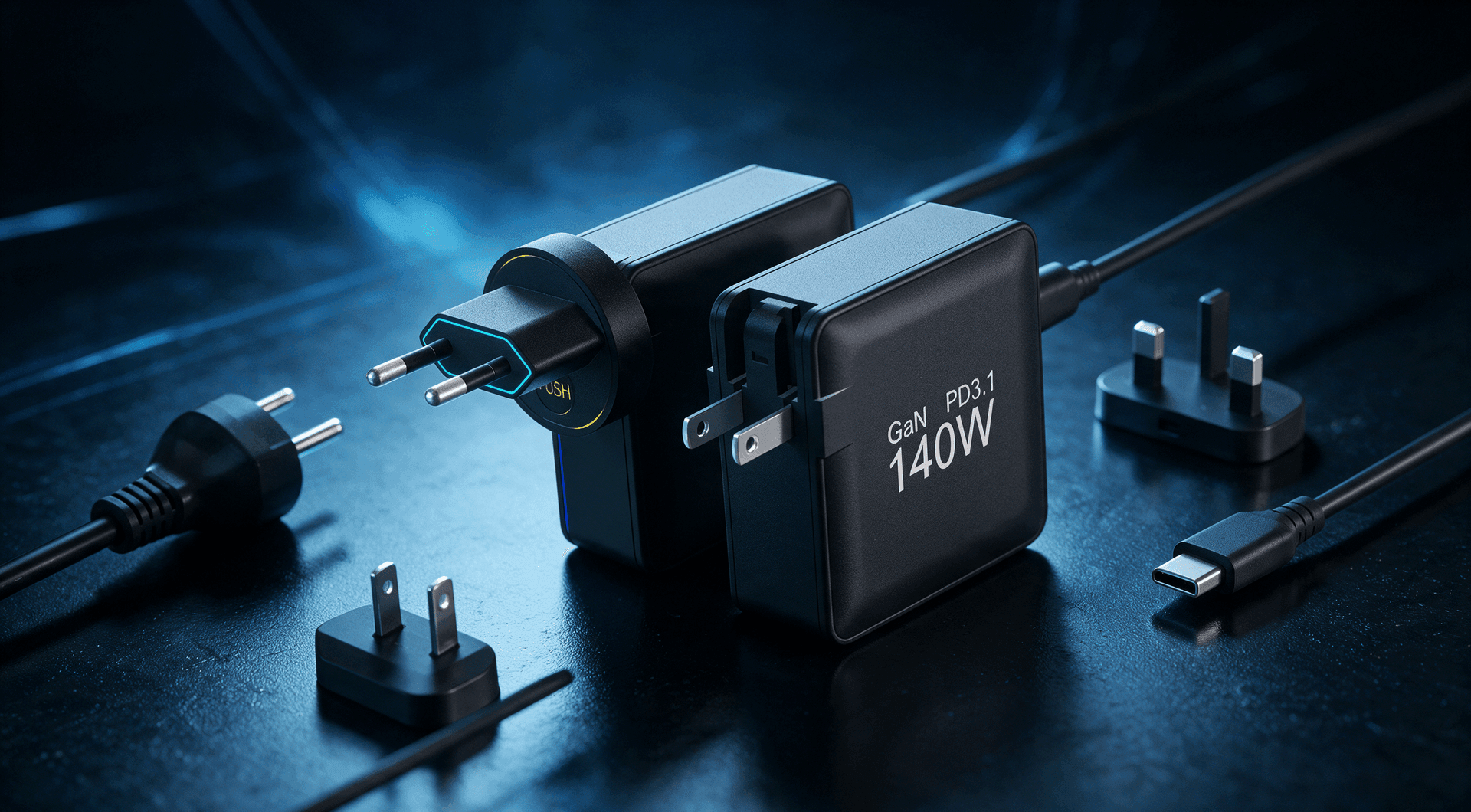

90–264VAC wide-range input with interchangeable US / EU / UK / CN plugs for worldwide use. Active PFC circuit with PF＞0.95 and up to 93% full-load efficiency for lower power consumption.
Protected on every level.
Certified worldwide.
Full protection against short-circuit, over-voltage and over-current. Backed by CE, CCC, cTUVus and CB safety certifications, plus 30,000-hour MTBF, natural-convection cooling and a 1-year warranty for reliable, worry-free charging.
Every detail,
spelled out.
- USB PD Protocol
- PD3.0, PD3.1, EPR AVS, PPS, QC2.0, QC3.0, QC4+, AFC, Apple2.4, BC1.2
- USB-C1 Output
- 5V3A, 9V3A, 10V3A, 11V3A, 12V3A, 15V3A, 20V5A, 28V5A; PPS 3.3–21V 5A
- USB-C2 Output
- 65W max (5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A)
- USB-A Output
- 18W max (5V3A, 9V2A, 12V1.5A)
- Maximum Output Power
- 140W (USB-C1 single, C2 & A no load); 65W (USB-C2); 18W (USB-A); 140W total (C1+C2+A)
- Output Voltage Regulation
- 1%
- Load Regulation
- 5%
- Output Voltage Ripple
- < Vout × 1% (AC 230V, full load, 20MHz BW, 47µF + 0.1µF caps)
- Start-up Time
- < 3000 ms
- Rise Time
- < 200 ms
- Hold-on Time
- > 3 ms
- Rating Input Voltage
- 100–240VAC, 50/60Hz
Need it customized?
Tell us your voltage, current and connector — we'll tune the PD140 or build a fresh power stage around your spec.
