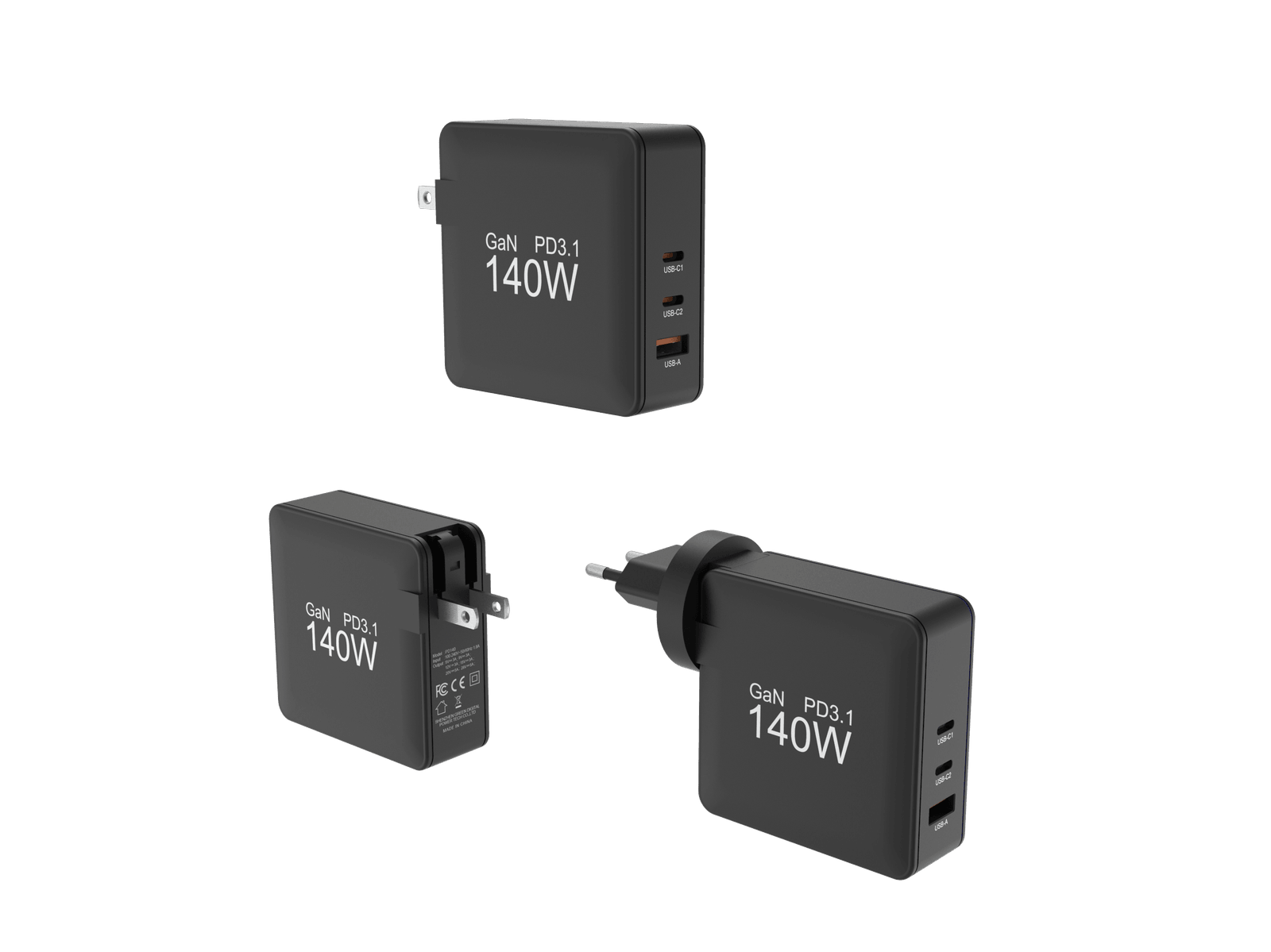

PD140 High-Power USB-C PD Power Supplies
140W GaN-based USB-C PD power supply with two USB-C ports and one USB-A port, supporting PD 3.0/3.1 EPR up to 28V for laptops, drones and power tools.
Certifications
Key Features
- Supports PD 3.0 / 3.1 with EPR mode — output 5V, 9V, 10V, 11V, 12V, 15V, 20V, 28V up to 140W
- PPS & EPR AVS mode with adjustable output from 3.3V to 28V
- Worldwide AC input 90–264VAC, 50/60Hz
- Active PFC circuit with power factor > 0.95
- Two USB-C fast-charge ports plus one standard USB-A port
- One-year guarantee
Models
1 model in the PD140 series.
| Model | Voltage | Current | Applications |
|---|---|---|---|
| PD140-2C1A | Primary USB-C: 5/9/12/15/20/28V (PPS 3.3–21V) Secondary USB-C: 5–20V USB-A: 5–12V | Primary USB-C: up to 5A Secondary USB-C: up to 3.25A USB-A: up to 3A | Notebooks, drones, power tools, tablets, smartphones |
Interested in the PD140 series?
Send us your battery pack specs or device requirements — we reply with a matched model, pricing and lead time.
