Power Adapters

WP800

1200W-max IP-rated waterproof power adapters with wide DC output range and optional CAN bus interface.

OUTPUT 12–60VCURRENT 14–40APOWER 480–1200WCERT CE

Full Specifications →

CE · ETL · FCCIndustrial Grade

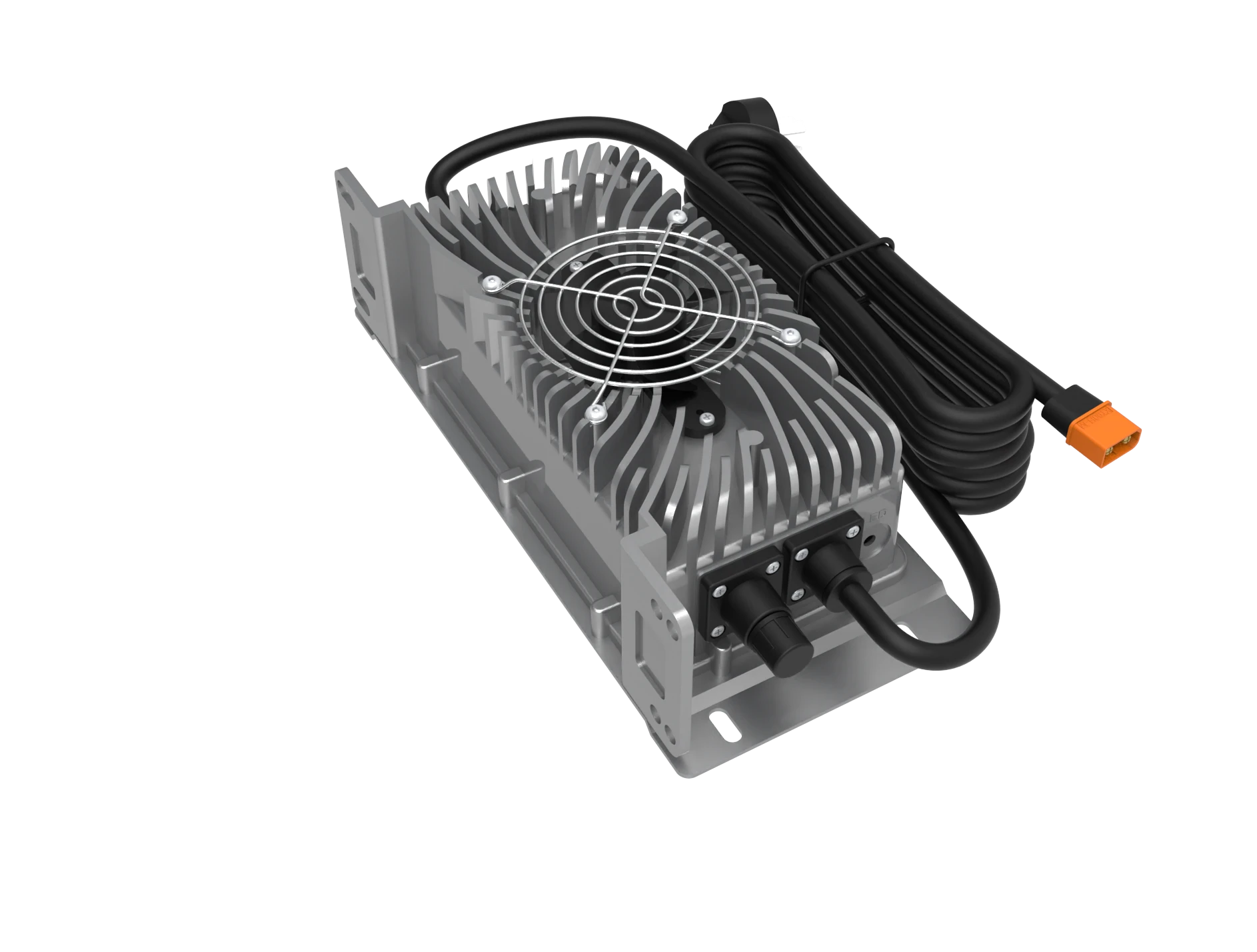

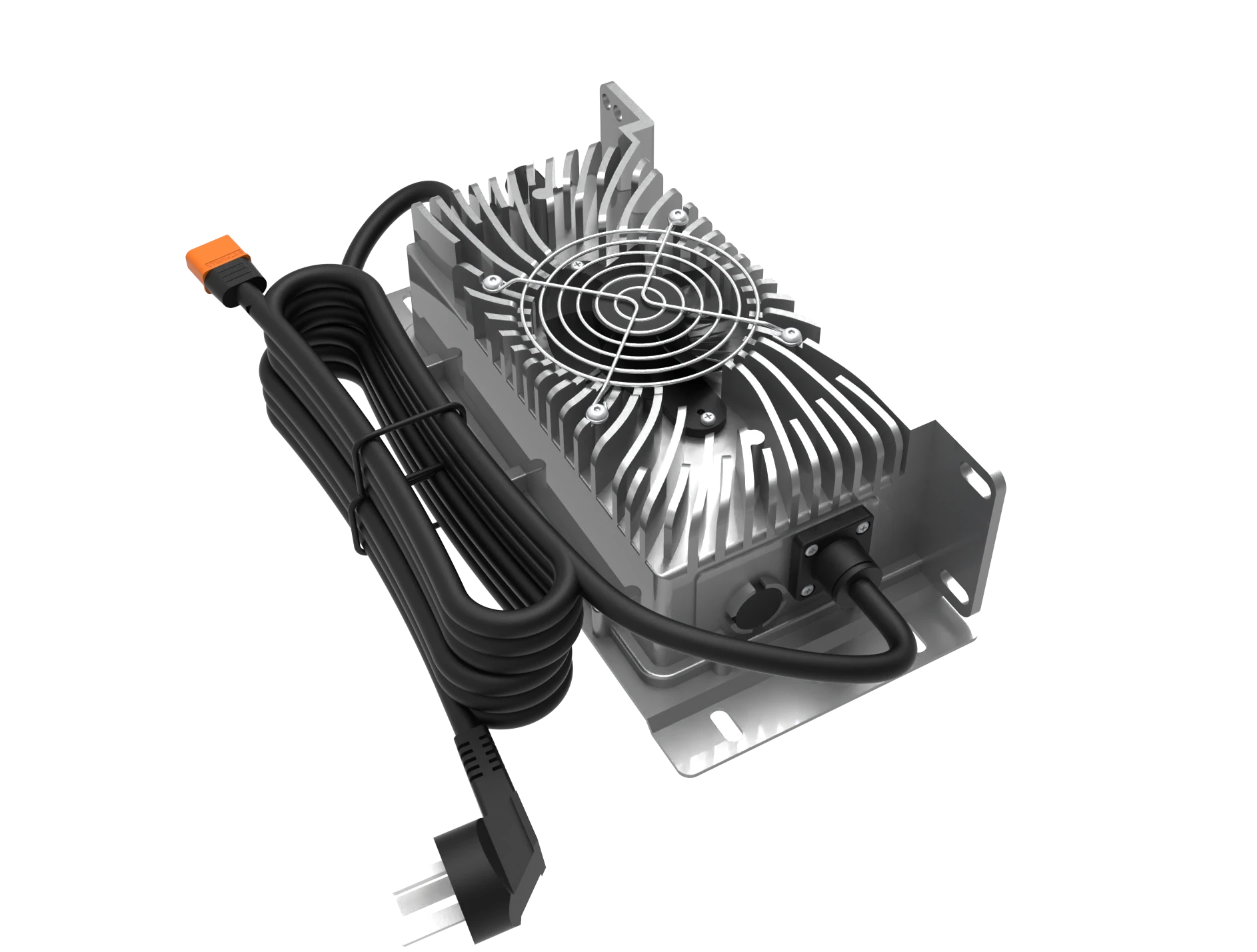

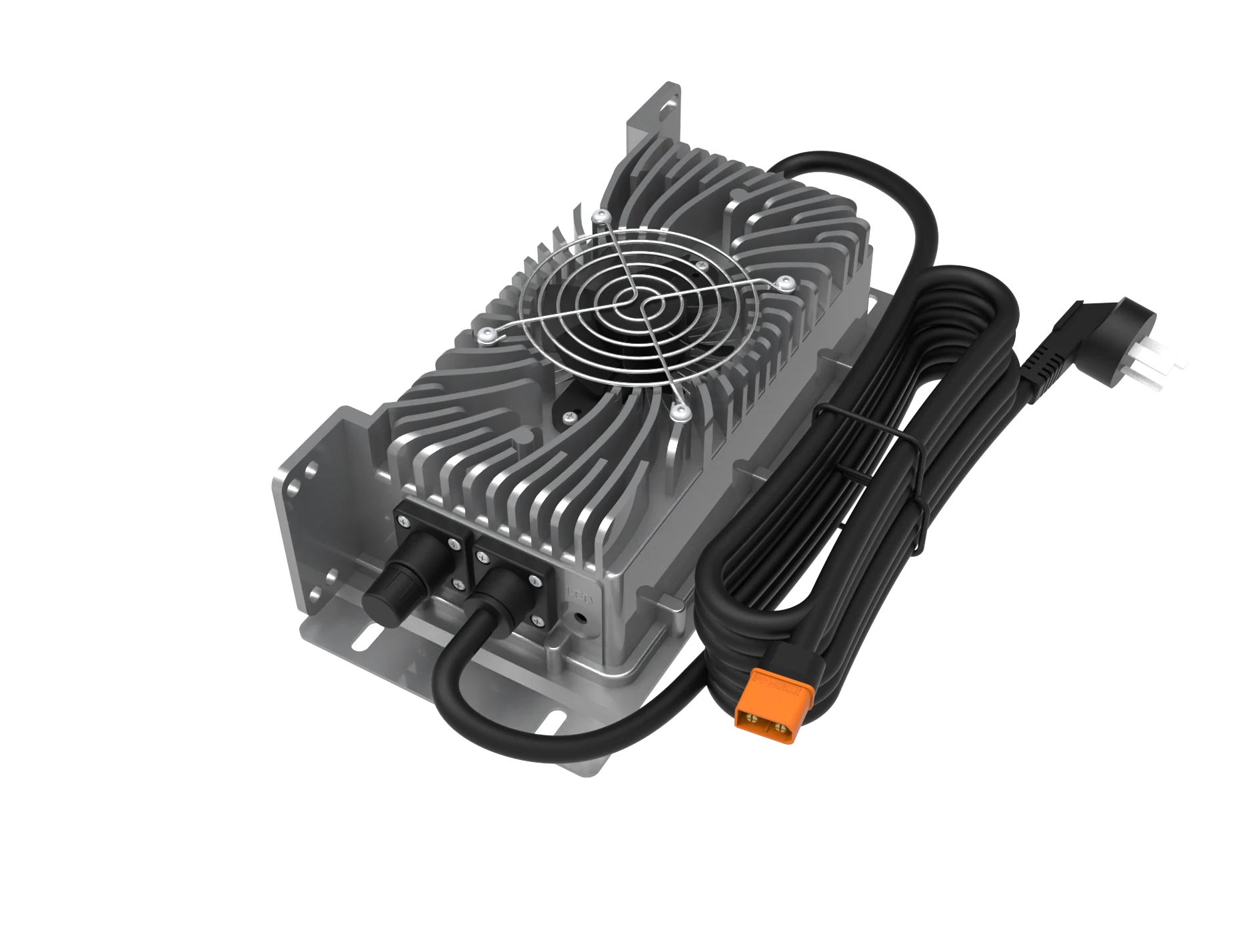

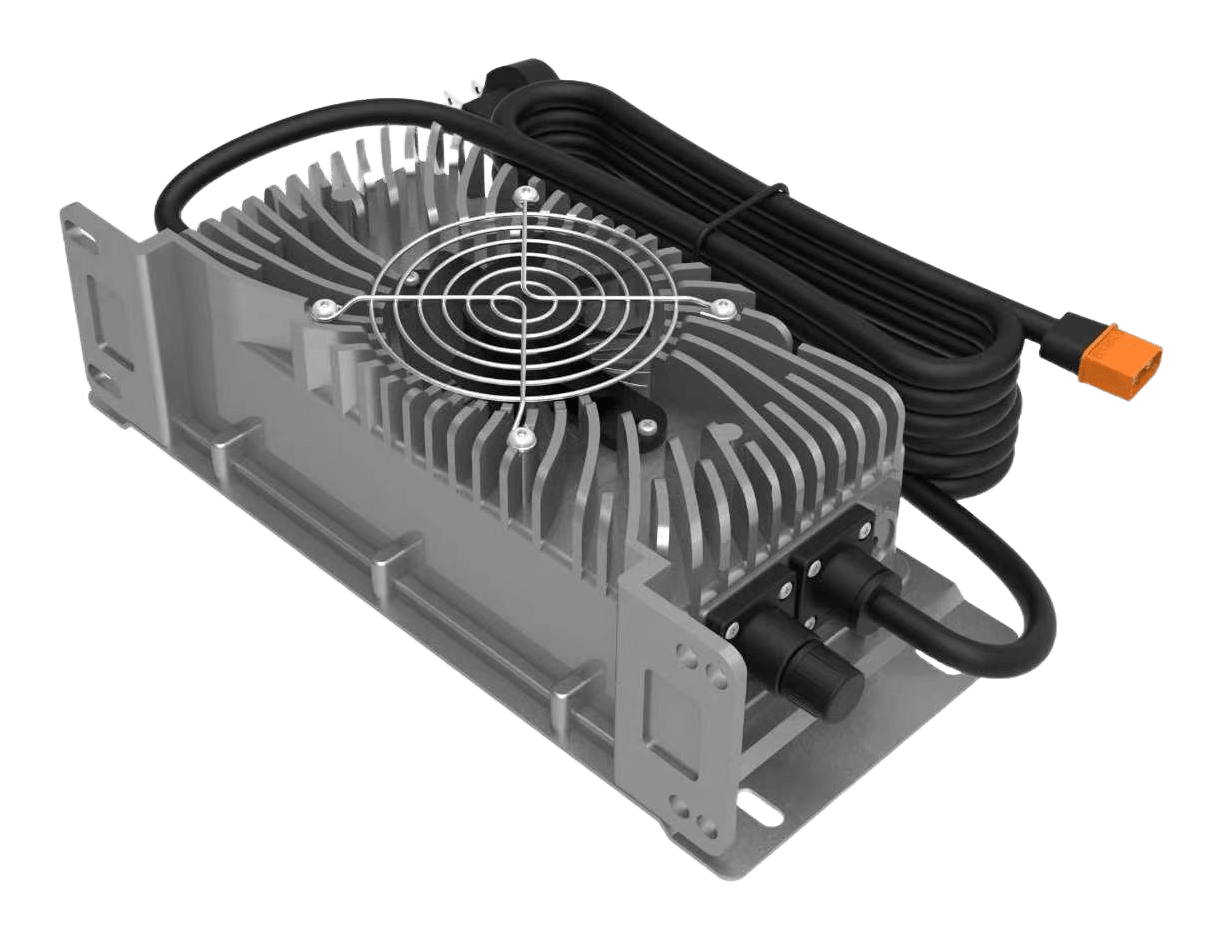

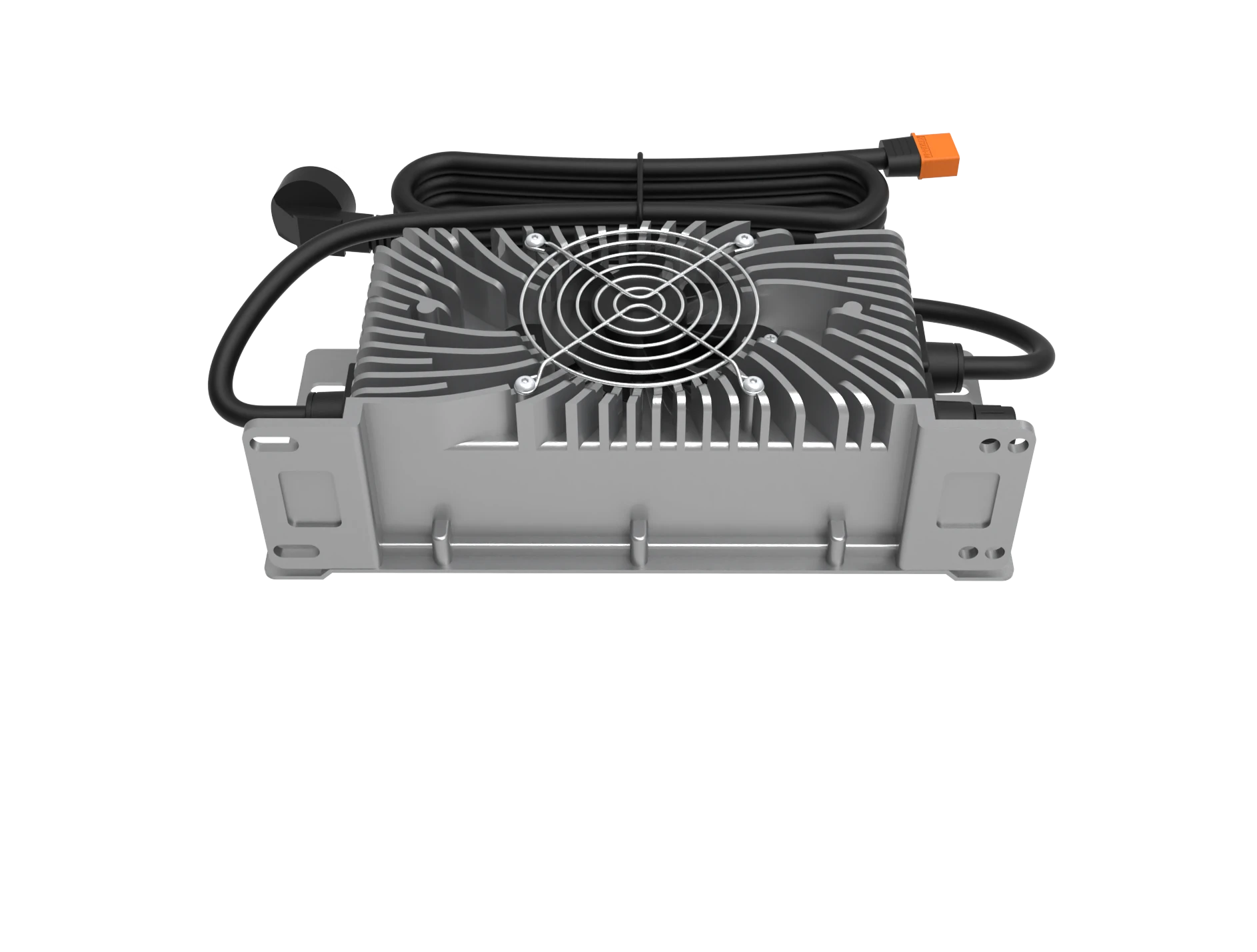

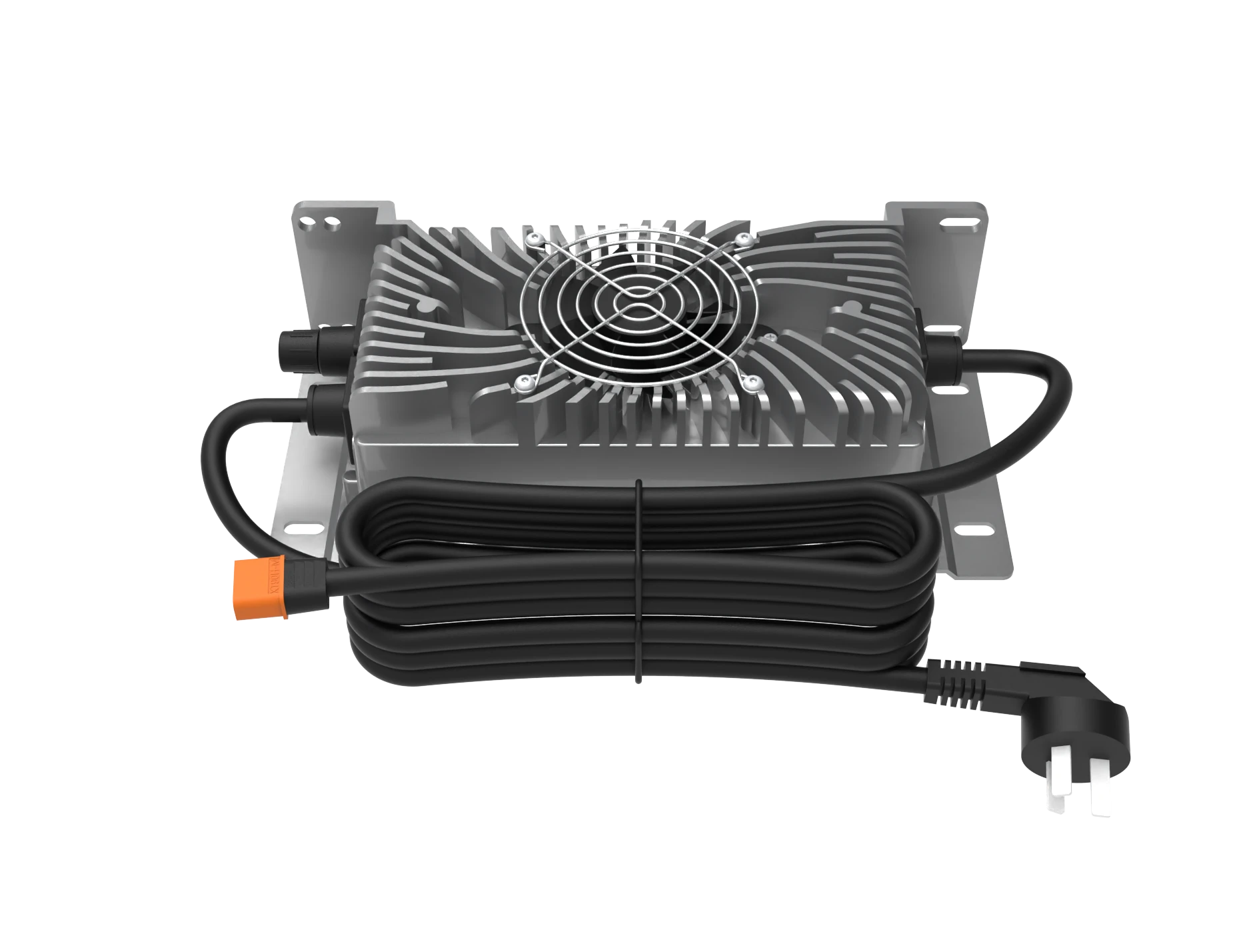

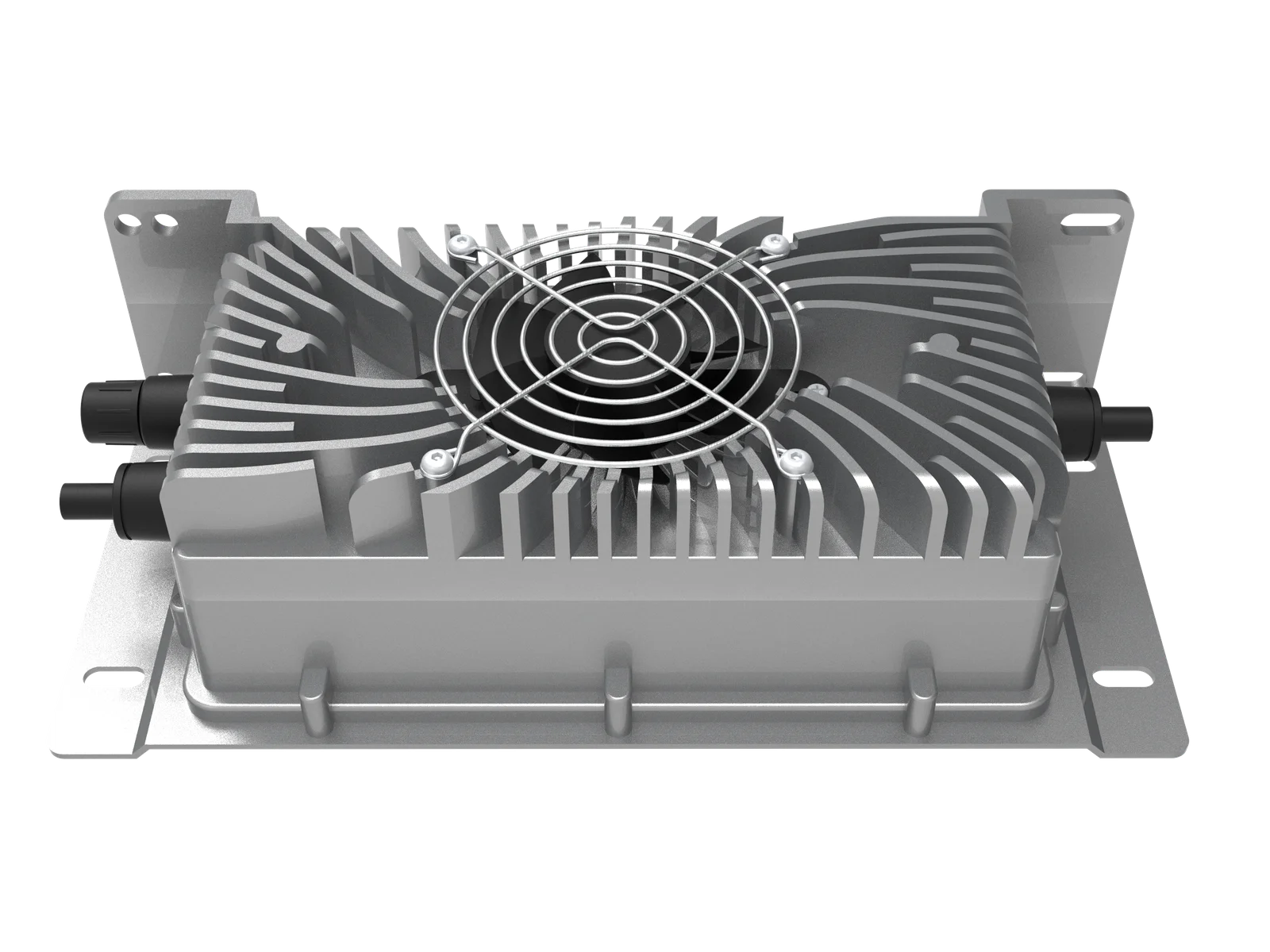

WP800 1200W Waterproof Power Adapter Series

SCROLL

01 · DesignUltra-slim.Easy to mount and install

02 · Power1200W max.High efficiency, low heat generation

03 · Input90–264V AC.Wide range universal input

04 · PFCActive PFC.Built-in power factor correction

05 · CommsCAN / RS485.Reserved communication interfaces

06 · SafetyFull protection.Shorted · OVP · OLP · OTP

Powerhouse, built for industry

Big power.
Compact footprint.

1200W-max IP-rated waterproof power adapters with wide DC output range and optional CAN bus interface. Engineered for reliable output where space, weight and thermal headroom matter.

1200W

Max Output

94%

Peak Efficiency

Models

High-Efficiency Design

Higher efficiency.
Less waste.

The WP800 is tuned for stable, high-efficiency operation across its full voltage and current range, minimizing heat and energy waste.

Industry average~88%

WP80094%

Efficiency at full load, 220V AC input (typical).

Ingress Protection

IP67 sealed.
Built for the outdoors.

The WP800 is fully sealed against dust and water to IP67 — rain, mud and wash-bay splash stay outside while up to 1200W of regulated DC keeps flowing. Designed for vehicles and machines that live outdoors.

IP67 enclosureDust-tight, protected against temporary immersion

Sealed interfacesPower and signal connections stay protected

All-weather outputReliable from -10°C to +40°C, rain or dust

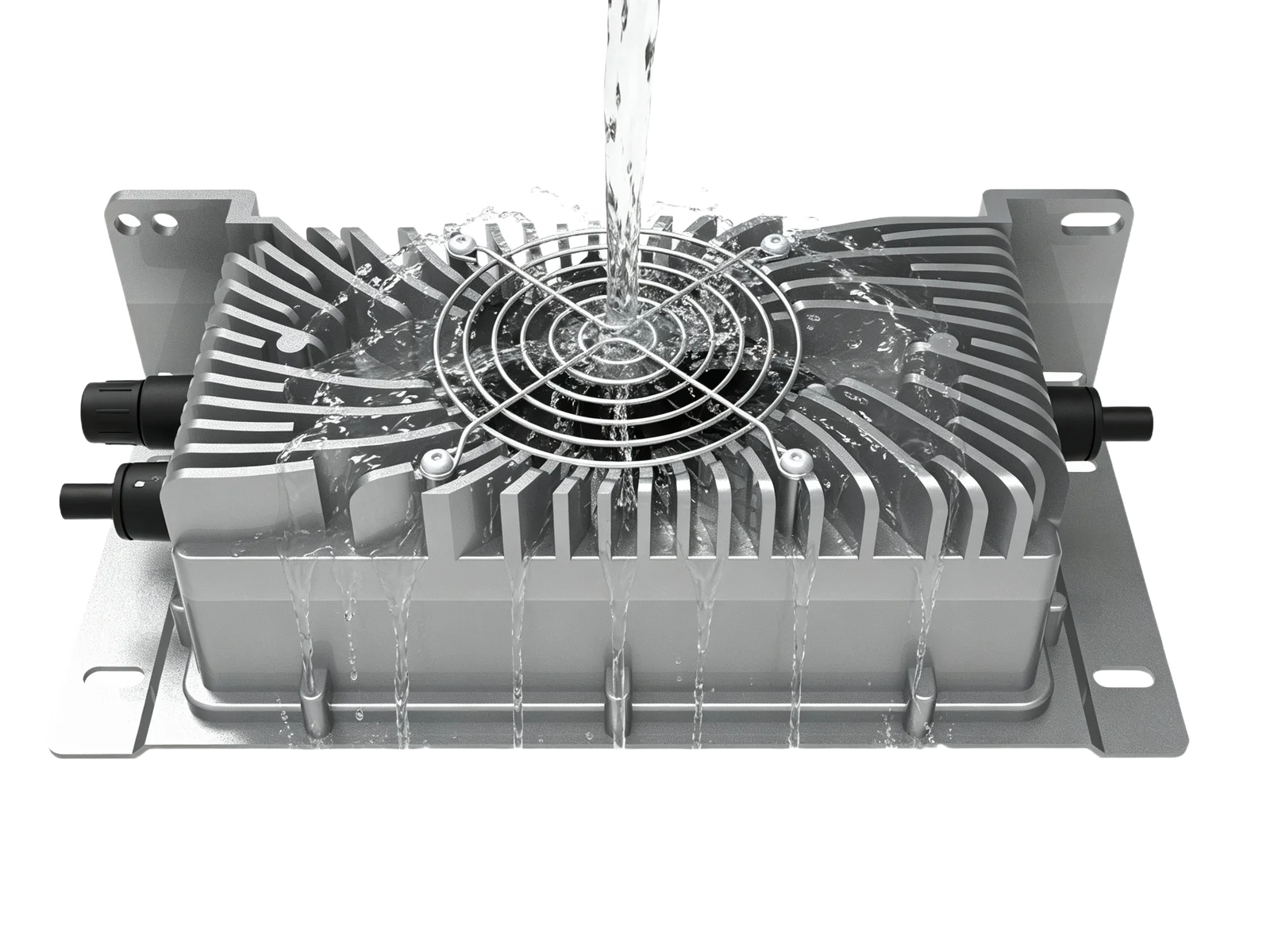

WP800 fully sealed IP67 waterproof design

Reliability · Protection

Protected from
every angle.

Layered safeguards watch the output at every stage, while the sealed aluminum-alloy housing shrugs off vibration, humidity and temperature swings in the field. Reverse-polarity defense protects the battery connection too.

Over-voltageOutput clamped

Over-currentCurrent limited

Over-temperatureThermal derating

Short-circuitAuto shutdown

Specifications

Every detail,
spelled out.

Rated input voltage: 100–240VAC, 50/60Hz
Input voltage range: 90–264VAC
Power factor (Typ.): PF > 0.96 @ full load
Input current (Typ.): 10A @ 100VAC
Inrush current (Typ.): Cold start 75A @ 230VAC
Standby input power: < 5W
Efficiency (Typ.): 89–94% (varies by model)
Models: WP800-120400 / WP800-240300 / WP800-420180 / WP800-480175 / WP800-600140
Output voltage: 12V / 24V / 42V / 48V / 60V (±5%)
Output current range: 0–40A / 0–30A / 0–20A / 0–18A / 0–14A
Output power @AC220V: 480W / 720W / 840W / 840W / 840W
Line regulation: 1%
