Smart Chargers
GAN085 85W GaN Charger
GAN085 85W GaN desktop charger — 90–264VAC universal input, 4-stage Li-ion and 3-stage lead-acid curves, CE/FCC certified.
The GaN085 is an 85W GaN AC/DC desktop charger with independent 4-stage (Li-ion) and 3-stage (Lead-Acid) charging curves, suitable for Li-ion, LiFePO4, lithium-manganese, lead-acid (gel / flooded / AGM) and NiMH battery packs. With universal 90–264V AC input, >93% efficiency and short-circuit / over-voltage / reverse-polarity protection, it serves power tools, drones, e-scooters, surveillance systems and consumer electronics.
Certifications
CEPSEcETLusSAACBFCCUK
Key Features
- AC/DC desktop power adapter
- Small size
- High efficiency, >90% at AC 90V input
- Universal AC input, wide range cover 90~264V
- Meet EN62368, EN55032, EN61000 & UL62368
- Protection: Short circuit / Over voltage / Overcurrent
- 1 years warranty
Datasheet
Download DatasheetGaN085-CHARGER-EN-20251127.pdf — technical specification (PDF preview)
Loading…
Models
6 models in the GAN085 series.
| Model | Battery Type | Voltage | Current | Power | Applications |
|---|---|---|---|---|---|
| GaN085-1260 | Li-ion | 12.6V | 6.0A | 75.6W | Li-ion / LiFePO4 / LiMn / Lead-Acid / NiMH, 36–50Ah |
| GaN085-1680 | Li-ion | 16.8V | 5.0A | 84W | Li-ion / LiFePO4 / LiMn / Lead-Acid / NiMH, 5–40Ah |
| GaN085-2100 | Li-ion | 21.0V | 4.0A | 84W | Li-ion / LiFePO4 / LiMn / Lead-Acid / NiMH, 4–30Ah |
| GaN085-2940 | Li-ion | 29.4V | 2.8A | 82.32W | Li-ion / LiFePO4 / LiMn / Lead-Acid / NiMH, 3–20Ah |
| GaN085-420020 | Li-ion | 42.0V | 2.0A | 84W | Li-ion / LiFePO4 / LiMn / Lead-Acid / NiMH, 2–15Ah |
| GaN085-588015 | Li-ion | 58.8V | 1.5A | 88.2W | Li-ion / LiFePO4 / LiMn / Lead-Acid / NiMH, 1.5–12Ah |
Interested in the GAN085 series?
Send us your battery pack specs or device requirements — we reply with a matched model, pricing and lead time.
Related Products
Smart Chargers
GAN170
GAN170 170W GaN Smart Charger
170W GaN smart chargers covering 12V to 58.8V battery systems for light electric vehicles and portable equipment.
View details
Smart Chargers
G300
G300 300W Charger Series
300W desktop battery chargers with charging outputs from 12.6V/18A to 58.8V/5A.
View details
Smart Chargers
G600

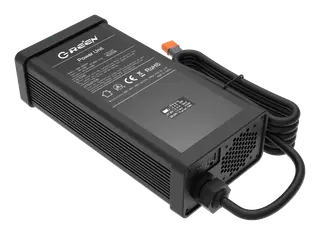

G600 600W Portable Charger
